ELMEX product list

---

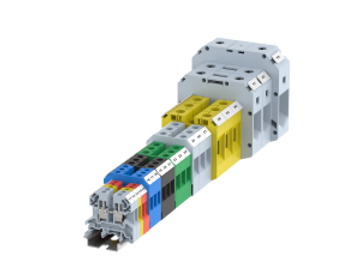

elmex Universal (TS35mm & TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven screw clamp & spring clamp design offers high contact force and is easy to use. The range covers terminals for conductor sizes from 0.5 sq mm to 95 sq mm for screw clamp and 0.5 sq mm to 16 sq mm for spring clamp.

elmex Universal (TS35mm & TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven screw clamp & spring clamp design offers high contact force and is easy to use. This Multi conductor Feed through terminal blocks with three and four connections that all are routed via the same current bar, This allows you to connect up to four conductors with individual wiring per terminal block.

 elmex Earth Terminal Blocks replace conventional bus-bar used for earthing. The structural design is such that the mounting rail not only has a mechanical but also an electrical function. Earthing is established through the foot which clamps directly onto the rail. Earthing Terminal Blocks are mounted on the same rail along with other terminal blocks. The conducting part is Brass with Nickel-Tin plating, providing a low-resistance path.

elmex three level terminal blocks can be used for high-density wiring and for wiring special equipment such as proximity sensors. DUSD4 has a special link attached to the middle and lower level to facilitate the interconnection between adjacent terminal blocks, DU3D4 and DUSD4. The negative and positive circuits can be easily bridged together and then connected to a power source with DU3D4 terminal.

elmex component housing terminal blocks with a screw clamp connection technology are specially designed for use of a Diode and other electrical components for various applications, Other safety requirements are also taken into account, They find application in PLC, DCS, Machine tools, and other Control & Automation panels. Diode terminal blocks with blocking diodes are used to protect components against reverse current resistance.

elmex component housing terminal blocks with a screw clamp connection technology are specially designed for use of a Diode and other electrical components for various applications, Other safety requirements are also taken into account, They find application in PLC, DCS, Machine tools, and other Control & Automation panels. Diode terminal blocks with blocking diodes are used to protect components against reverse current resistance.

elmex offers a range of Disconnecting Type Terminal Blocks which can be used to disconnect the continuity without actually removing the wires. Certain applications in control and measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. These Terminal Blocks mainly find applications in secondary Circuit of CT, Relay Panels, etc. A clearly visible Sliding Link is used for disconnection. The link can be moved to one side by unscrewing.

Certain Applications in Control and Measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. elmex offers a range of disconnecting-type terminal blocks that can be used to disconnect the continuity without actually removing the wires. These Terminal Blocks find special applications in the control and instrumentation industry. The hinged knife edge lever can be easily pushed open to simulate faulty conditions.

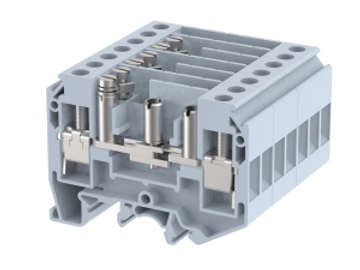

elmex distribution blocks are an Innovative Engineering Solution to satisfy customers' needs. They find application in Power Distribution for Control Circuits and can also be used to centralize earthing for the entire panel. These blocks are completely shrouded and accommodate single inputs and multiple outputs. They replace conventional open Bus-Bars, ensuring perfect continuity.

"A thermocouple is a bi-metallic junction ie a junction between two different metals that produces voltage related to temperature difference. Thermocouples are classified depending on different alloys used for different temperature ranges. Some of the thermocouple types are as ; 'K' Type : Chromel (Ni/Cr) + Alumel (Ni/Al) 'J' Type : Iron (Fe) + Constantan (Cu/Ni) 'J' Type : Iron (Fe) + Constantan (Cu/Ni) 'E' Type : Chromel (Ni/Cr) + Constantan (Cu/Ni) For temperature measuring requirement

elmex Micro Terminal Blocks are small in size and light in weight, yet functionally same as Standard Terminal Blocks. They are specially developed for installation where space is extremely limited but the same cable density is required as in a normal situation. They can be mounted on TS 15 Rail, which is also smaller, lighter and more economical than TS 32 and TS 35 Rails. The terminals are recommended for use in industries like elevators, automation etc.

elmex Lighting Pole Terminals offer safe and reliable termination solutions for Street Light Wiring requirements. The special construction of Lighting Pole Terminals ensures minimum junctions unlike contemporary Terminal Blocks, thus making them suitable for long distance wiring without much heat generation and minimum voltage drop A solid Copper Alloy Piece functions as Currently Carrying part and Wire Clamping unit.

elmex offers a PCB terminal block with Screw Clamp Technology enabling easy and safe transmission of signal, data, and power to the PCB. The Screw connection is maintenance-free and, with a multi-conductor connection, enables a high level of Flexibility and a High load-carrying capacity. The main features of these PCB connectors are safe to discharge of interface signals , Low transfer impedance with a large surface shield.

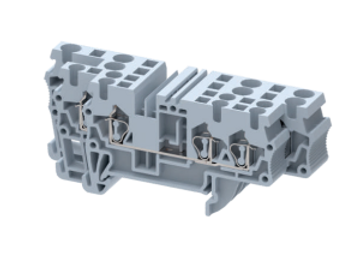

elmex Universal (TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven spring clamp design offers high contact force and is easy to use. The range covers terminals for conductor sizes from 0.5 sq mm to 16 sq mm for spring clamp. The special foot design provides the slot for easy mounting and removal of a single terminal from the stack, using a screwdriver.

elmex Universal (TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven spring clamp design offers high contact force and is easy to use. The range covers terminals for conductor sizes from 0.5 sq mm to 16 sq mm for spring clamp. The special foot design provides the slot for easy mounting and removal of a single terminal from the stack, using a screwdriver.

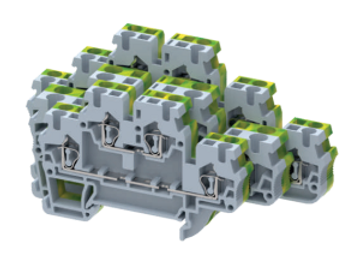

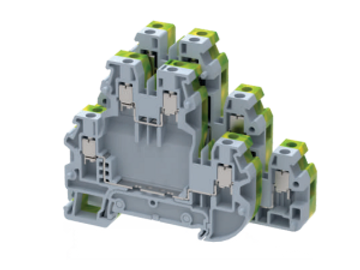

elmex Multi Level Terminals are the perfect solution where space is a constraint and high density wiring is needed. The compact design of these Terminals with 6 mm thickness allows double wiring density and reducing the total number of terminal blocks to half.

elmex Hybrid distribution blocks are an Innovative Engineering Solution to satisfy customer's needs. This hybrid terminal block is used to subdivide a 35 sq.mm feed line into multiple connections. They find application in Power Distribution for Control Circuits and can also be used to centralize earthing for the entire panel. These blocks are completely shrouded and accommodate single input and multiple outputs. They replace conventional open Bus-Bars, ensuring perfect continuity.

elmex offers plug-in terminal blocks with a special design of hybrid terminal blocks, These terminal blocks consist of a terminal block and the corresponding plug connectors, The plug connectors are available in up to 8 positions. These terminal blocks provide the perfect solution inside the control cabinet .

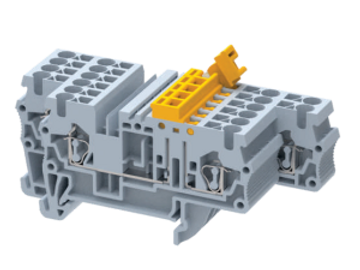

elmex disconnect terminal blocks with a Spring clamp connection technology is specially designed for certain applications in control and measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. These terminal blocks mainly find applications in a secondary circuit of C.T. , Relay panel, etc. The test socket is a standard feature for these terminal blocks also the spring cage provides a tight fit connection against vibration sensitive application.

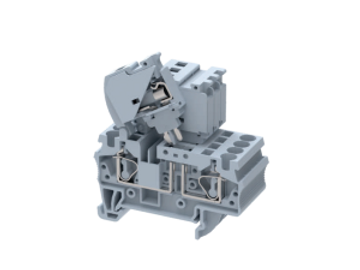

Certain Applications in Control and Measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. elmex offers a range of disconnecting-type terminal blocks which can be used to disconnect the continuity without actually removing the wires. These Terminal Blocks finds special application in control and instrumentation industry. The hinged knife edge lever can be easily pushed open to simulate faulty conditions.

Applications in Control & Automation require fuse protection facility. elmex offers Terminal Blocks DCF4 with built-in safety fuse levers. These Terminal Blocks accommodate a glass cartridge fuse of 5 mm x 20 mm, 5 mm x 25 mm size. An LED is provided for blown-fuse indication. Standard operating voltages can be selected from the range of D1=24 VDC, D2=48 VDC, D3=110 VDC, D4=220 VDC, D5=12 VDC, A1=110 VAC and A2=240 VAC

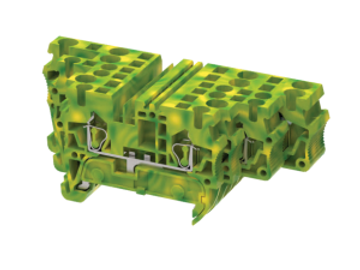

elmex Earth Terminal Blocks replace conventional bus-bar used for earthing. The structural design is such that the mounting rail not only has a mechanical but also an electrical function. Earthing is established through the foot which clamps directly onto the rail. Earthing Terminal Blocks are mounted on the same rail along with other terminal blocks.

elmex Micro Terminal Blocks are small in size and light in weight, yet functionally same as Standard Terminal Blocks. They are specially developed for installation where space is extremely limited but the same cable density is required as in a normal situation. They can be mounted on TS 15 Rail, which is also smaller, lighter and more economical than TS 32 and TS 35 Rails. The terminals are recommended for use in industries like elevators, automation etc.
