FINDER PRODUCT LIST

---

• Sensitivity adjustment from 1 to 80 lux
• Cadmium-free contacts
• Cadmium-free photosensor element (IC photo diode)
• Circuit with isolation transformer
• Italian Patent – The innovative principle of compensation for the influence of controlled lights, also compatible with slow ignition lamps (up to 10 minutes)
• First 3 operating cycles of the relay without delay at switching on and off, in order to facilitate the adjustment process by the installer
• Available for 230 and 120 V AC (50/60 Hz) power supplies

• 1 NO output contact with phase interruption
• Rated Current 16A
• Cadmium-free photosensor element (IC photo diode)
• Circuit with isolation transformer
• Italian Patent – The innovative principle of compensation for the influence of controlled lights, also compatible with slow ignition lamps (up to 10 minutes)
• First 3 operating cycles of the relay without delay at switching on and off in order to facilitate the adjustment process by the installer
• Available for 230 and 120 V AC (50/60 Hz) power supplies

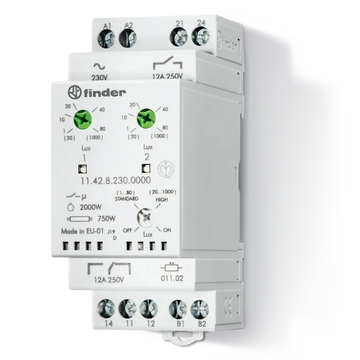

• Two independent outputs with individual lux setting
• Electronic circuit – transformer isolated
• Rated Current 16A
• Sensitivity adjustment from 1 to 80 lux
• Cadmium-free contacts
• Cadmium-free photosensor element (IC photo diode)
• Circuit with isolation transformer
• First 3 operating cycles of the relay without delay at switching on and off, in order to facilitate the adjustment process by the installer
• Available for 230 and 120 V AC (50/60 Hz) power supplies

• Miniature size 1 NO output contact
• Italian Patent “light feedback compensation”
• Rated Current 12A
• Sensitivity adjustment from 1 to 80 lux
• Cadmium-free contacts
• Cadmium-free photosensor element (IC photo diode)
• First 3 operating cycles of the relay without delay at switching on and off, on in order to facilitate the adjustment process by the installer
• Available for 230 and 120 V AC (50/60 Hz) power supplies

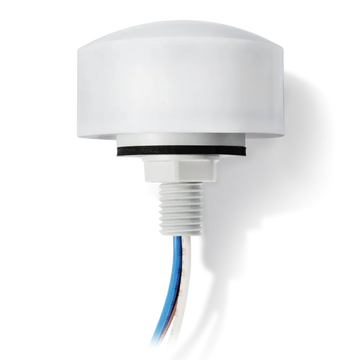

• Mounting on street light body
• Pre-wired with silicone wire, 500 mm length
• Rated Current 16A
• Fixed sensivity 10 lux (± 20%)
• Cadmium-free contact material
• Cadmium-free photosensor (IC photo diode)
• For the first 3 working cycles the delay time (On and Off) is reduced to zero in order to aid installation
• Available for 230 and 120 V AC (50/60 Hz) operation
• Light dependent relay 1 NO contact meeting ENEL specifications for public lighting

• First 3 operating cycles of the relay without delay at switching on and off, in order to facilitate the adjustment process by the installer
• LED indicators
• SELV separation between power supply circuit and contacts
• Double insulation between power supply and photosensor
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts
• Cadmium-free photosensor element (IC photo diode)

• First 3 operating cycles of the relay without delay at switching on and off, in order to facilitate the adjustment operations by the installer
• LED indicators
• SELV separation between power supply circuit and contacts
• Double insulation between power supply and photosensor
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts
• Cadmium-free photosensor element (IC photo diode)

• SELV separation between power supply circuit and contacts
• Double insulation between power supply and photosensor
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts
• Cadmium-free photosensor element (IC photo diode)

• “Daily” time switch function – programmable to inhibit main output (for energy saving)
• Auxiliary output – directly driven by the photosensor
• Italian patent “Light feedback compensation” principle
• Internal battery for set-up/programming without supply and for time/program back-up in case of power failure (5 years)
• SELV separation between contact and supply circuit
• Double insulation between supply and photosensor
• 35 mm rail (EN 60715) mount
• Cadmium-free contact material and photosensor (IC photo diode)

• Shortest programming interval: 30 min

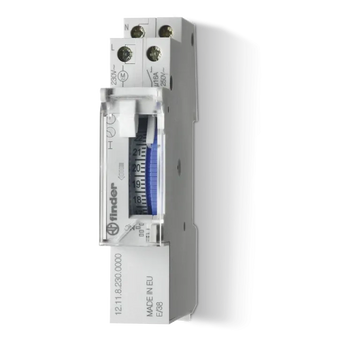

• Shortest programming interval: 15 min (12.11)

Shortest programming interval:

• 1 h (12.31-0007)
• 15 min (12.31-0000)

• Automatic summer/winter time change
• Changeover 16 A
• LCD display for viewing, configuration and programming
• Block with 4-digit PIN
• Backlit display
• Internal battery for programming without power supply, easily replaceable
• Separation between the power supply circuits and contacts
• Width 35 mm
• 35 mm rail (EN 60715) mounting
• Cadmium-free Contacts

• 1 CO 16 A output
• Functions: Switch ON, Switch OFF, Pulse (1 s…59 min)
• Minimum time interval setting – 1 minute
• Summer/Winter – European, Australian, Brazilian time
• LCD display for status indication, set-up and programming
• Lock with a 4-digit PIN
• Back-lit display
• Internal battery for set-up and programming without supply, easily replaceable from the front
• Protective separation between supply and contacts
• 35 mm rail (EN 60715) mount
• Cadmium-free contact material

• 2 CO 16 A output
• Functions: Switch ON, Switch OFF, Pulse
• Minimum time interval setting – 1 minute
• Summer/Winter – European, Australian, Brazilian time
• LCD display for status indication, set-up and programming
• Lock with a 4-digit PIN
• Back-lit display
• Internal battery for set-up and programming without supply, easily replaceable from the front
• Protective separation between supply and contacts
• 35 mm rail (EN 60715) mount
• Cadmium-free contact material

• Minimum time interval setting – 1 minute
• Internal battery for set-up without supply
• Pulse output function: 1 s…59:59(mm:ss)
• Automatic adjustment for daylight saving
• 35 mm rail (EN 60715) mount

• Automatic winter/summer time changeover
• 1 CO 16 A
• LCD display for status indication, set-up and programming
• Lock with a 4-digit PIN
• Back-lit display
• Internal battery for set-up and programming without supply, easily replaceable from the front
• Protective separation between supply and contacts
* 35 mm wide
• 35 mm rail (EN 60715) mount
• Cadmium-free contact material

• Functions: Astro ON, Astro OFF ON/OFF switching
• Pulse function: 1 s… 59 min
• Shortest progamming interval 1 minute
• Automatic change of summer/winter time
• LCD display for viewing, configuration and programming
• Block with 4-digit PIN
• Backlit display
• Internal battery for programming without power supply – easily replaceable
• Separation between the power supply circuits and contacts
• Width 35 mm
• 35 mm rail (EN 60715) mounting
• Cadmium-free Contacts

• Functions: Astro ON, Astro OFF ON/OFF switching Pulse function: 1 s… 59 min
• Shortest progamming interval 1 minute
• Automatic change of summer/winter time
• LCD display for viewing, configuration and programming
• Block with 4-digit PIN • Backlit display
• Internal battery for programming without power supply – easily replaceable
• Separation between the power supply circuits and contacts
• Width 35 mm
• 35 mm rail (EN 60715) mounting
• Cadmium-free Contacts

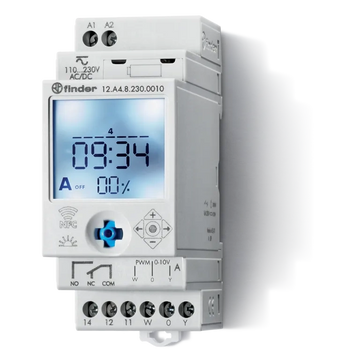

• 1 analog output: 0-10V or PWM
• Functions: “Astro” ON, “Astro” OFF, ON/OFF
• Location coordinates easily settable for most European countries through Post codes
• Summer/Winter European, Australian, Brazilian time
• LCD status indication, set-up and programming
• Lock with a 4-digit PIN
• Back-light display
• Internal battery for set-up and programming without supply, easily replaceable from the front
• Protective separation between supply and contacts
• 35 mm wide
• 35 mm rail (EN 60715) mount
• Cadmium free contact material

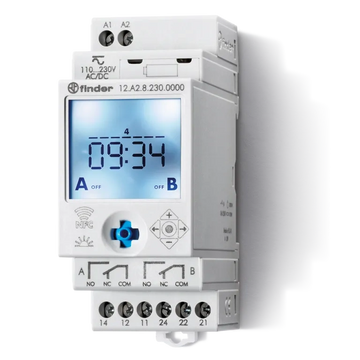

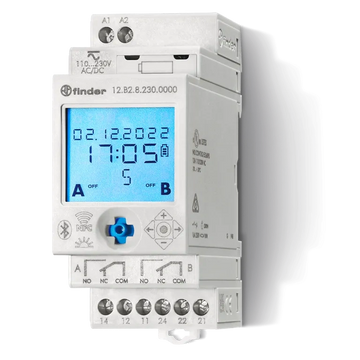

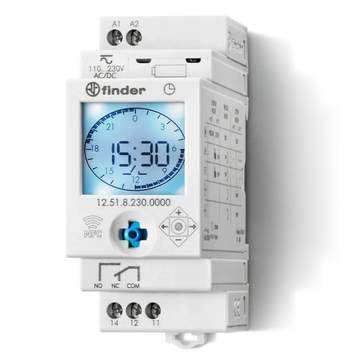

• Different programming methods:
  – “Smart” programming via Smartphone – Android and Apple – with Bluetooth and NFC technology
  – “Classic” joystick manual programming
• Annual programming with advanced functions
• Bluetooth 5 + NFC for app configuration and expandability
• 2 CO (DPST) 16 A outputs on board
• Supply voltage: 110…230 V AC/DC
• Outputs and inputs expandable via 1Y.P2 and 13.21-B
• Synchronization via external wireless GPS antenna (Type 012.BG.8.230)

• Step or monostable operation
• Command impulse: continuous
• Long mechanical and electrical durability, quieter than electromechanical relays
• Suitable for SELV applications and also available for 12 and 24 V AC/DC power supply
• Cadmium-free Contacts

• Bistable operation with call & reset commands, particularly suitable for applications in the service sector: public toilets/bathrooms, hospitals, hotels
• 35 mm rail (EN 60715) or flange mount

• Bistable operation with call & reset commands, particularly suitable for applications in the
  service sector: public toilets, hospitals, hotels
• 35 mm rail (EN 60715) or flange mount

• BLE transmission protocol
• Flush mounting (e.g. round box 0 60 mm)
• 12 selectable functions
• Management of up to 8 scenarios

• Long range radio frequency transmission 868 MHz
• Multi-zone heating/cooling function
• Hygrostat function combined with the Bliss2 thermostat

Compatible with the BLISS2 Smart thermostat.

• 20 selectable functions (impulse relay, timer, staircase light) for lights and fans
• 2 NO 6 A – 230 V AC independent and programmable contacts
• 2 inputs for wired buttons
• Transmission range: 10 m (approx) in free space

• Can provide a slave contact, compatible with most common commercial and residential systems including: BTicino: Axolute, Matix, Living and Magic, Gewiss: GW24, Vimar: Plana and Idea
• Cadmium-free contacts

2 versions available:

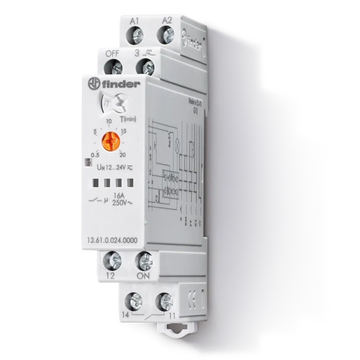

Type 13.61.0.024.0000 – for 24 V AC/DC operation and  Type 13.61.8.230.0000 – for 230 V AC operation.

• Mount in flush-mounted box and compatible with most common commercial and residential systems including: AVE, BTicino, Gewiss, Simon-Urmet, Vimar
• 21 selectable functions: impulse, timed (1s – 24h), control of electric blinds and shutters
• 2 NO 6 A – 230 V AC independent and programmable contacts
• 2 inputs for wired buttons
• Transmission range: 10 m (approx) in free space

• Use with 3 or 4 wire connection, with automatic recognition by the relay
• Control input can be continuously applied
• Longer mechanical and electrical life, and much quieter than electromechanical step relays
• “Zero crossing” load switching
• 35 mm rail (EN 60715) mount
• Cadmium-free contact material

• Use with 3 or 4 wire connection, with automatic recognition by the relay
• Control input can be continuously applied
• Longer mechanical and electrical life, and much quieter than electromechanical step relays
• “Zero crossing” load switching
• Can be mounted behind blanking plates, as widely used in residential wiring systems such as; BTicino: Axolute, Matix, Living and Magic, Gewiss: GW24, Vimar: Plana and Idea
• Cadmium-free contact material

• Flush mount (e.g. round 60 mm box)
• For roller shutters and electric blinds
• 2 NO 6 A – 230 V AC independent and programmable contacts
• 2 inputs for wired buttons
• Transmission range: 10 m (approx) in free space

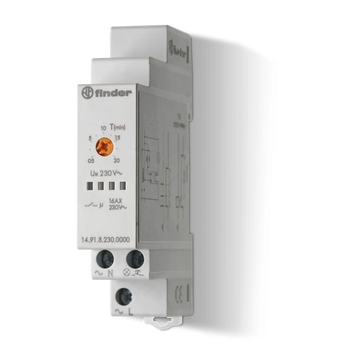

• Time scales from 30 s to 20 min
• Zero crossing load switching
• Suitable for 3 and 4 wire systems, with automatic recognition
• Compatible with movement detectors (18 Series)
• LED indicator
• Cadmium-free contacts
• Can be used with illuminated pushbuttons
• “Blade + cross” regulator, selector switch, and 35 mm rail clip (EN 60715) that can all be operated with both slotted and cross-head screwdrivers
• 35 mm rail (EN 60715) mounting
• European patent

• Reset for centralised switch off
• 4 functions:
  • Step relay
  • Timing Step relay
  • Staircase timer
  • Light ON
• Terminal for reset (centralised switch off)
• “Zero crossing” load switching
• LED status indicators
• Cadmium free contact material
• Can be used with illuminated push – buttons
• “Blade + cross” – both flat blade and cross head screw drivers can be used to adjust then function selector, the timing trimmer, and to disengage the 35 mm rail mounting clip
• 35 mm rail (EN 60715) mount
• European Patent

• Time setting from 30 seconds to 20 minutes
• “Zero crossing” load switching
• Suitable for 3 or 4 wire systems, with automatic recognition
• Compatible with movement detectors (18 series)
• Cadmium free contact material
• Can be used with illuminated push – buttons
• “Blade + cross” – both flat blade and cross head screw drivers can be used to adjust the function selector, the timing trimmer, and to disengage the 35 mm rail mounting clip
• 35 mm rail (EN 60715) mount

• Time setting from 30 seconds to 20 minutes
• “Zero crossing” load switching
• Suitable for 3 or 4 wire systems, with automatic recognition
• Compatible with movement detectors (18 series)
• LED status indicators
• Cadmium free contact material
• Can be used with illuminated push – buttons
• “Blade + cross” – both flat blade and cross head screw drivers can be used to adjust the function selector, the timing trimmer, and to disengage the 35 mm rail mounting clip
• 35 mm rail (EN 60715) mount
• European Patent

• 110…125 V AC supply
• Time setting from 30 seconds to 20 minutes
• “Zero crossing” load switching
• Wiring compatible with mechanical versions and with old type (low emission) illuminated pushbuttons
• Cadmium free contact material
• Can be used with illuminated push – buttons
• “Blade + cross” – both flat blade and cross head screw drivers can be used to adjust the function selector, the timing trimmer, and to disengage the 35 mm rail mounting clip
• 35 mm rail (EN 60715) mount

• Time setting from 30 seconds to 20 minutes
• “Zero crossing” load switching
• Wiring compatible with mechanical versions and with old type (low emission) illuminated pushbuttons
• Cadmium free contact material
• Can be used with illuminated push – buttons
• “Blade + cross” – both flat blade and cross head screw drivers can be used to adjust the function selector, the timing trimmer, and to disengage the 35 mm rail mounting clip
• 35 mm rail (EN 60715) mount

• Multi-function (with or without memory of light intensity, including a special function with memory for CFL lamps)
• Linear regulation
• Dimmer speed adjustment
• Staircase light function with switch-off warning by dimming the lamps
• Power supply 230 V AC 50/60 Hz with automatic frequency recognition
• NO 6 A contact

• Maximum lamp load 400 W
• Maximum 100 W load with energy saving dimmerble lamps (LED or CFL)
• Leading edge or Trailing edge adjustment method (depending on the function)
• “Transformer” function (for use with electromagnetic transformers)
• Minimum dimming level setting
• Width one module 17.5 mm, 35 mm rail (EN 60715) mounting

• 7 functions selectable according to the type of load
• Functions with memory or without memory
• Trailing edge or Leading edge adjustment method
• Linear/Non-linear regulation
• Suitable for dimmable LED lamps, dimmable energy saving lamps, halogen lamps, transformer or electronic ballasts
• Transmission range: about 10 meters in free space without obstacles
• Soft on/off
• Thermal protection against overloads and short circuit protection

• Maximum load 8 A
• PWM technology
• Compatible with LED strips
• Over-temperature, short-circuit and reverse polarity protection
• Supply voltage 12…24 V DC

• 2 x 400W channels
• LED indicators for each channel
• Thermal protection and short circuit protection
• Manual control of each channel via front panel
• Management of scenarios
• Power supply via KNX bus
• 35 mm rail (EN 60715) mounting
• Compatible with ETS 4 (or higher)

• Panel or recessed mount
• Maximum lamp load 400 W
• Trailing edge control method
• Two versions: step or linear adjustment
• Two types of programming: with or without memory of the light intensity
• 230 V AC power supply (separate models for 50 and 60 Hz)

• Maximum dimmable power 200 W
• 7 functions selectable according to the type of load
• Functions with memory or without memory
• Wall mounting, compatible with most common Italian residential switch boxes
• Trailing edge or Leading edge adjustment method
• Linear/Non-linear regulation
• Transmission range: about 10 meters in free space without obstacles
• Soft on/off
• Thermal protection against overloads and short circuit protection

• Compatible with energy saving (CFL or LED) dimmable lamps and with most types of transformer/ballast drivers
• Maximum lamp load 500 W
• 2 modes – with or without memory
• 230 V AC supply, 50/60 Hz (with automatic adjustment for frequency)
• Suitable for incandescent and halogen lighting loads
• Use with 3 or 4 wire connection
• “Soft” On and Off transitions

• Maximum lamp load 100 W
• 2 modes – with or without memory
• 230 V AC supply, 50/60 Hz (with automatic adjustment for frequency)
• Suitable for incandescent and halogen lighting loads
• Use with 3 or 4 wire connection
• “Soft” On and Off transitions

• Output is electrically common to the supply voltage
• Small size
• Equipped with Light Dependent sensor and delay time
• Switch off delay adjustment
• Can be used in any position for movement detection
• Wide detection angle

• Output is electrically common to the supply voltage
• Small size
• Equipped with Light Dependent sensor and delay time
• Switch off delay adjustment
• Can be used in any position for movement detection
• Wide detection angle

• Output is electrically common to the supply voltage
• Small size – Equipped with Light Dependent sensor and delay time
• Switch off delay adjustment
• Can be used in any position for movement detection
• Wide detection angle

• Output is electrically common to the supply voltage
• Small size
• Equipped with Light Dependent sensor and time delay
• Wide detection angle

Available in version 18.31-0031 with application on high ceilings (up to 6 meters), ceiling and false ceiling mount and switch-off delay (30 s… 35 min).

Available also in version 18.31-0030 with recess mounting.

• Designed for hotel corridors, offices, common passage areas
• Detection area 30 m long and 4 m wide

• 2 outputs (datapoint) for load control (lighting, HVAC etc.)
• Brightness and sensitivity adjustment
• 1 output (datapoint) – master/slave detection
• Ambient brightness control can be deactivated
• Cyclical signaling of brightness level and movement
• Discriminated management of the origin of the movement (type 18.4K)
• Ceiling or false ceiling installation
• Compatible with ETS 4 (or higher)

 Also available in versions Type 18.51… 0040 &  Type 18.51-B300

• Constant brightness control
• Power on, power off warning
• Power on, power off warning and courtesy light

• 2 outputs (data telegrams) for load control (lighting, HVAC etc.)
• 1 output (data telegram)
• Movement detection
• Sensor brightness and sensitivity adjustment
• Master/Slave connection to extend the detection area
• Ambient brightness control can be deactivated
• Signaling of brightness level and movement (for safety applications)

• Wide angle: 180°
• Wall mounting compatible with 60 mm box
• Quick installation thanks to push-in terminal

• Wide angle: 110°
• Wall mount installation
• Compatible with 3 module housing

• Output is electrically common to the supply voltage
• Small size
• Equipped with Light Dependent sensor and delay time
• Switch off delay adjustment
• Can be used in any position for movement detection
• Wide detection angle

Equipped with 3 selectable functions:

• Auto: functioning as a monostable relay (follows the A3 input)
• Off: relay permanently de-energized
• On: relay permanently energized

Application examples:

• Control of pumps, blowers or groups of motors
• Mainly suitable for industrial control systems

 – 6 relays for 3 roller shutters
– Logically interlocked outputs
– Slats management (3 different types)

• 17.5 mm wide
• 24 V AC/DC power supply
• 35 mm rail (EN 60715) mounting
• Equipped with LED indicator

The device allows, through the front selector, automatic or manual operation. With the selector in position A (Automatic) the signal (0 … 10) V is derived directly from the automation system. In position H (manual) the automatic system signal is ignored and the
signal (0 … 10) V is derived directly from the setting of the potentiometer on the front of the module

Equipped with 3 selectable functions:

• Auto: functioning as a monostable relay (follows the A3 input)
• Off: relay permanently de-energized
• On: relay permanently energized

Application examples:

• Control of pumps, blowers or groups of motors
• Mainly suitable for industrial control systems

• Width: one module 17.4 mm
• Test button and mechanical indicator
• 7 sequences
• AC or DC coil
• Identification label
• Connection with illuminated pushbuttons via the Type 026.00 adaptor
• Cadmium-free contacts

• Width: one module 17.4 mm
• Test button and mechanical indicator
• 7 sequences
• AC or DC coil
• Identification label
• Connection with illuminated pushbuttons via the Type 026.00 adaptor.
• Cadmium-free contacts

• Width: one module 17.4 mm
• Test button and mechanical indicator
• 7 sequences
• AC or DC coil
• Identification card
• Connection with illuminated pushbuttons via the Type 026.00 adaptor
• Cadmium-free contacts

• Width: one module 17.4 mm
• Test button and mechanical indicator
• 7 sequences
• AC or DC coil
• Identification label
• Connection with illuminated pushbuttons via the Type 026.00 adaptor.
• Cadmium-free contacts

• Width: one module 17.4 mm
• Test button and mechanical indicator
• 7 sequences
• AC or DC coil
• Identification label
• Connection with illuminated pushbuttons via the Type 026.00 adaptor.
• Cadmium-free contacts

• Width: one module 17.4 mm
• Test button and mechanical indicator
• 7 sequences
• AC or DC coil
• Identification label
• Connection with illuminated pushbuttons via the Type 026.00 adaptor.
• Cadmium-free contacts

• Width: one module 17.4 mm
• Test button and mechanical indicator
• 7 sequences
• AC or DC coil
• Identification label
• Connection with illuminated pushbuttons via the Type 026.00 adaptor.
• Cadmium-free contacts

• 17.5 mm wide
• NO contact gap ≥ 3 mm, double break
• Coil and contacts rated for continuous service
• Silent AC/DC coil (with protection varistor)
• Protective separation between coil and contacts (reinforced insulation)
• Standard version with mechanical indicator and LED
• Version with Auto-On-Off selector
• Available versions with AgNi and AgSnO2 contact material
• Compliant with EN 61095: 2009
• Module with auxiliary contacts with Quickmount coupling to the contactor (versions with 1NO + 1NC and 2NO)

• 35 mm wide
• NO contact gap ≥ 3 mm, double break
• Coil and contacts rated for continuous service
• Silent AC/DC coil (with protection varistor)
• Protective separation between coil and contacts (reinforced insulation)
• Standard version with mechanical indicator and LED
• Version with Auto-On-Off selector
• Available versions with AgNi and AgSnO2 contact material
• Compliant with EN 61095: 2009
• Module with auxiliary contacts with Quickmount coupling to the contactor (versions with 1NO + 1NC and 2NO)

• NO and NC contact gap ≥ 3 mm, double break
• Coil and contacts rated for continuous service
• Silent AC/DC coil (with varistor protection)
• Protective separation between coil and contacts (reinforced insulation)
• Standard version with mechanical indicator
• AgSnO2 contact material
• Compliant with EN 61095: 2009 and EN 60947-4-1: 2009
• 35 mm rail (EN 60715) mounting

• NO and NC contact gap ≥ 3 mm, double break
• Continuous duty for the coil and contacts
• AC/DC silent coil (with varistor protection)
• Protective separation (reinforced insulation) between coil and contacts
• Mechanical indicator as standard
• Compliant with EN 60947-4-1 (Mirror Contact) version available
• Auxiliary modules compliant with EN 60947-5-1 (mechanically linked contacts)
• Compliant with EN 61095: 2009• 35 mm rail (EN 60715) mount

• 17.5 mm wide
• Contact material AgNi
• NO and NC contact gap ≥ 3 mm, double break
• Continuous duty for the coil and contacts
• AC/DC silent coil (with varistor protection)
• Protective separation (reinforced insulation) between coil and contacts
• Mechanical indicators as standard
• AgNi contacts
• Compliant with EN 61095: 2009
• 35 mm rail (EN 60715) mount

32 A modular contactor – 4 pole

• 4 NO, 3 NO + 1 NC, 2 NO + 2 NC, 4 NC
• NO and NC contact gap ≥ 3 mm, double break
• Continuous duty for the coil and contacts
• AC/DC silent coil (with varistor protection)
• Protective separation (reinforced insulation) between coil and contacts
• Mechanical indicators as standard
• AgNi contacts
• Compliant with EN 61095: 2009
• 35 mm rail (EN 60715) mount

• 6 sequences
• Screw terminals
• AC coil
• Panel or recessed mount
• Cadmium-free Contacts

• 6 sequences
• Screw terminals
• AC coil
• Panel or recessed mount
• Cadmium-free contacts

• 6 sequences
• Screw terminals
• AC coil
• Panel or recessed mount
• Cadmium-free contacts

• 6 sequences
• Screw terminals
• AC coil
• Panel or recessed mount
• Cadmium-free contacts

• 6 sequences
• Screw terminals
• AC coil
• Panel or recessed mount
• Cadmium-free contacts

• 6 sequences
• Screw terminals
• AC coil
• Panel or recessed mount
• Cadmium-free contacts

• Screw terminals
• AC coil
• Panel mount
• Cadmium-free contacts
• Italian patent

• Screw terminals
• AC coil
• Panel mount
• Cadmium-free contacts
• Italian patent

• Screw terminals
• AC coil
• Panel mount
• Cadmium-free contacts
• Italian patent

• Screw terminals
• AC coil
• Panel mount
• Cadmium-free contacts
• Italian patent

• Screw terminals
• AC coil
• Panel mount
• Cadmium-free contacts
• Italian patent

• Screw terminals
• AC coil
• Panel mount
• Cadmium-free contacts
• Italian patent

• 2 changeover contacts for switching low loads
• Subminiature relay in the standard DIL outline and form
• Sensitive DC coil – 200 mW
• Washable: RT III
• Cadmium-free contacts

• Low profile
• Sensitive DC coil – 200 mW
• Wash tight: RT III
• Cadmium-free contacts

Versions available:
32.21-4000
32.21-4300

• 1 changeover contact or 1 normally open contact
• Ultra-slim, 5mm wide
• Sensitive DC coil – 170 mW (possibility of AC/DC power supply with 93 Series sockets)
• UL Listing (relay/socket/jumper link)
• Cadmium-free contacts
• 8/8 mm clearance/sliding distance
• 6 kV (1.2/50 μs) insulation between coil and contacts

Type 34.81 is a solid state relay for printed circuit mount, direct or via PCB socket.
Also for 35 mm rail mount via screw, screwless or push-in terminal sockets

Available versions:

34.81.7.xxx.9024

• 6 A, 24 V DC output switching

34.81.7.xxx.8240

• 2 A, 240 V AC output switching
• Zero crossing switching

34.81.7.xxx.7048

• 100 mA, 48 V DC output switching
• PCB or 93 series sockets

34.81.7.xxx.7220

• 200 mA, 110/220 V DC output switching
• PCB or 93 series sockets

• Small size
• 1 changeover contact
• Sugar cube Miniature relay
• Sensitive DC coil – 360 mW
• Washable: RT III
• Cadmium-free contacts

• Sensitive DC or AC/DC coils
• Integral coil indication and protection circuit
• Removal of the relay via the plastic retaining and release clip
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting

• Sensitive DC or AC/DC coils
• Integral coil indication and protection circuit
• Removal of the relay through the plastic retaining and release clip
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting

• AC/DC power supply (12 or 24 V)
• Screw terminals
• Width 6.2mm

• DC input circuit
• Integral coil indication and protection circuit
• Quiet, high switching speed and electrical life
• Removal of the relay through the plastic retaining and release clip
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting

• DC power supply
• Supplied with voltage presence circuit and coil protection
• Quiet, high switching speed and electrical life
• Removal of the relay through the plastic retaining and release clip
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting

• Sensitive DC or AC/DC coils
• Integral coil indication and protection circuit
• Removal of the relay through the plastic retaining and release clip
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting

• Sensitive DC or AC/DC coils
• Integral coil indication and protection circuit
• Removal of the relay through the plastic retaining and release clip
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting

• Coil options; DC sensitive, AC or AC/DC versions
• Integral coil indication and protection circuit
• Quick and easy ejection of relay by plastic retaining clip
• UL Listed (relay/socket combination)
• 35 mm rail (EN 60715) mounting
• Screwless terminals

• Sensitive DC or AC/DC coil versions
• Integral coil indication and protection circuit
• Quick and easy ejection of relay using plastic retaining
  clip
• UL Listing (certain relay/socket combinations)
• 35 mm rail (EN 60715) mounting

• Sensitive DC or AC/DC input voltage
• AC or DC output switching (1 NO)
• Supplied with integral coil indication and
  protection circuit
• Quick and easy ejection of relay using plastic retaining clip
• UL Listing (certain relay/socket combinations)
• 35 mm rail (EN 60715) mounting

• Sensitive DC or AC/DC input voltage
• AC or DC output switching (1 NO)
• Supplied with integral coil indication and protection circuit
• Quick and easy ejection of relay using plastic retaining clip
• UL Listing (certain relay/socket combinations)
• 35 mm rail (EN 60715) mounting
• Screwless terminals

Also available as the the Type 38.91.3 with:

• Special input leakage current suppression circuit
• AC or AC/DC input voltage
• AC or DC output switching (1 NO)

• Common connection of terminals A1, A2 and 13+ with the jumper link
• UL Listing (relay/socket/jumper link)

Also available for ATEX/HazLoc versions.

• Coils from 6 to 24 and 125 V AC/DC, 230 V AC.
• Screw terminals and Push-in terminals
• Width 6.2mm

Also available for ATEX/HazLoc versions.

• Common connection of terminals A1, A2 and 13+ with the jumper link
• UL Listing (relay/socket/jumper link)

Also available for ATEX/HazLoc versions.

• Electromechanical relay
• AC or AC/DC power supply
• Screw terminals
• UL Listing (relay/socket/jumper link)
• Cadmium-free contacts
• Compliant with:
  – EN 60079-0: 2012 and EN 60079-15: 2010
  – 94/9/CE and 2014/34/UE
• Multiple connections with the jumper link (terminals A1, A2 and 11) and with the multiple MasterADAPTER connector.

• Jumper link for quick and easy distribution of the supply voltage via the BB (Bus-Bar) terminal on the output for connection with solenoid valves, relays or similar loads
• UL Listing (relay/socket/jumper link)

Version available with Push-in terminals (Type 39.50)

• Jumper link for quick and easy distribution of the supply voltage via the BB (Bus-Bar) terminal on the output and connection with solenoid valves, relays or similar loads
• UL Listing (relay/socket/jumper link)

• Accepts the Type 093.63, 093.63.0.024, 093.63.8.230 fuse holder modules (for 5 x 20 mm fuses) which allows protection of the output circuit saving space
• Common connection of terminals A1, A2 and 11 with jumper link
• UL Listing (relay/socket/jumper link)

• Coils from 6 to 125 V AC/DC, 125 and 220 V DC, 230 V AC and 24… 240 V AC/DC
• Special residual current suppression circuit, 125 V AC/DC and 230 V A
• Screw terminals and Push-in terminals

• Quick and easy distribution of power via the jumper link on the terminals
• BB (Bus-Bar) to facilitate use of proximity switches and other input devices
• Standard gold-plated contacts, to improve compatibility with the low signals of the PLC inputs
• UL Listing (relay/socket/jumper link)

• Quick and easy distribution of power via the jumper link on the terminals
  BB (Bus-Bar) to facilitate use of proximity switches and other input devices
• Standard gold-plated contacts, to improve compatibility with the low signals of the PLC inputs
• UL Listing (relay/socket/jumper link)

Version available with Push-in terminals (Type 39.71).

• Sensitive DC, AC or AC/DC input voltage
• AC or DC output switching (1 NO)
• UL Listing (certain relay/socket combinations)
• 6.2 mm wide
• Push-In terminals

• Sensitive AC or AC/DC coil versions
• 1 CO 6 A contact
• UL Listing (certain relay/socket combinations)
• 6.2 mm wide

• Sensitive DC, AC or AC/DC input voltage
• AC or DC output switching (1 NO)
• Common connection possible with optional jumper links (terminals A1, A2 and 13+)
• UL Listing (certain relay/socket combinations)
• 6.2 mm wide

• Sensitive DC, AC or AC/DC coil versions
• 1 CO 6 A contact
• Common connection possible with optional jumper links (terminals A1, A2 and 11)
• UL Listing (certain relay/socket combinations)
• 6.2 mm wide • Push-In terminals
• 35 mm rail (EN 60715) mounting

Also available as the Type 39.61.3 with:

• Special coil leakage current suppression circuit
• Coil options; 125 V AC/DC and 230 V AC
• 1 CO – 6 A/250 V AC

• 1 Pole
• 6.2 mm wide
• Jumper link option for the quick and easy distribution of supply voltage to proximity
  switches and similar input devices (Bus-bar connection BB)
• UL Listing (certain relay/socket combinations)
• Push-in terminals

• 1 Pole
• 6.2 mm wide
• Jumper link option for the quick and easy distribution of supply voltage to proximity switches and similar input devices (Bus-bar connection BB)
• Gold plated output contact as standard, for better compatibility with low energy PLC inputs
• UL Listing (certain relay/socket combinations)

• Start terminal
• DIP-switch for selection of 4 time scales and 8 functions
• Quick and easy common connection possible using optional jumper links (terminals A1, A2 and 15+)
• UL Listing (certain relay/socket combinations)
• Screw terminals

Also available for ATEX/HazLoc versions.

• Control signal terminal
• DIP-switch for selection of 4 time scales and
  8 functions
• Common connection possible with optional jumper links (terminals A1, A2 and 15)
• UL Listing (certain relay/socket combinations)
• Screw terminals

Also available for ATEX/HazLoc versions.

• Start terminal
• DIP-switch for selection of 4 time scales and 8 functions
• Common connection possible with optional jumper links (terminals A1, A2 and 15+)
• UL Listing (certain relay/socket combinations)
• Push-in terminals

Also available IECEx, ATEX, HazLoc version.

• Control signal terminal
• DIP-switch for selection of 4 time scales and 8 functions
• Common connection possible with optional jumper links (terminals A1, A2 and 15)
• UL Listing (certain relay/socket combinations)
• Push-in terminals

Also available ATEX, HazLoc version.

• Pin length 3.5 mm for PCB
• Pin length 5.3 mm for plug-in
• DC coil (650 mW or 500 mW)
• Variant with cadmium-free contacts – 8 mm, 6 kV (1.2/50µs) insulation between coil and contacts
• Compliance with glow wire test according to EN 60335-1
• For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
• For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules

• Pin length 3.5 mm for PCB mounting
• Pin length 5.3 mm for plug-in relays
• DC coil (650 mW or 500 mW)
• Variant with cadmium-free contacts
• 8 mm, 6 kV (1.2/50µs) insulation between coil and contacts
• Compliance with the Glow wire test according to EN 60335-1
• For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
• For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules

• Pin length 3.5 mm for PCB mounting
• Pin length 5.3 mm for plug-in relays
• DC coil (650 mW or 500 mW)
• Variant with cadmium-free contacts
• 8 mm, 6 kV (1.2/50µs) insulation between coil and contacts
• Compliance with glow wire test according to EN 60335-1
• For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
• For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules

• 5.0 mm pin pitch
• Direct PCB or 95 Series socket mount
• Pin length 3.5 mm for direct PCB mount
• Cadmium-free contact material available
• Meets EN 60335-1 glow wire requirements
• Environmental protection:
  – RT II – flux proof (Standard)
  – RT III – wash tight (Option)

• AC coil and DC coils
• Complies EN 60335-1 glow wire requirements
• Ambient Temperature range -40…+85°C
• Cadmium-free contact material
• 5.3 mm pin pitch for 95 Series socket or direct PCB mount

• Bistable (single coil)
• 3.5 or 5.0 mm pin pitch
• Direct PCB or 95 Series socket mount
• 8 mm Creepage and Clearance, 6 kV (1.2/50μs) between coil and contact(s)
• Environmental protection: RT II – flux proof (Standard) RT III – wash tight (Option)

• AC and DC coils
• 8 mm, 6 kV (1.2/50 μs) between coil and contacts
• Cadmium free contacts
• Flux proof: RT II standard, (also available in RT III version)

• AC and DC coil
• 8 mm, 6 kV (1.2/50 μs) between coil and contacts
• Cadmium-free contacts
• Flux proof: RT II standard, (also available in RT III version)

Also available for IECEx/ATEX/HazLoc versions.

• AC and DC coils
• 8 mm, 6 kV (1.2/50 μs) isolation, coil-contacts
• Cadmium-free contact material
• Flux proof: RT II standard, (RT III option)

Also available for IECEx/ATEX/HazLoc versions.

2 different versions available:
-Type 41.81-9024. 5 A, 24 V DC output switching.
-Type 41.81-82-40, 3 A, 240 V AC output switching, zero crossing switching.

Other features include:
• LED indicator
• Low profile (15.7 mm)
• Wash tight: RT III
• 2500 V AC insulation, input-output

• Sensitive DC coil:
  • 250 mW (10 A Type)
  • 400 mW (Type 16 A)
• High insulation between coil and contacts 10 mm, 6 kV (1.2/50 μs)
• Cadmium-free contacts
• Flux proof: RT II standard, (version RT III available as variant)

Available versions:
– 43.41
– 43.41-0300 1 NO, 10 A 5 mm pin pitch

• Sensitive DC coil: – 250 mW (10 A version) – 400 mW (16 A version)
• Very high coil-contact isolation 10 mm, 6 kV (1.2/50 μs)
• Cadmium-free contacts (preferred version)
• Flux proof: RT II standard, (RT III option)

• Distance between contacts ≥ 3 mm or ≥ 3.6 mm according to EN 60730-1
• Sensitive DC coil – 360 mW (Type 45.31… x310)
• Cadmium-free contacts
• Reinforced insulation between coil and contacts according to EN 60335-1, EN 50178, EN 60204, creepage and clearance of 8 mm
• 6 kV (1.2/50 µs) insulation between coil and contacts
• Flux proof: RT II

• 1 NO or 1 NC (SPST-NO or SPST-NC)
• Max ambient temperature +125 °C
• PCB mounting + 250 Faston

• 1 NO (SPST-NO), ≥ 3 mm gap
• Max ambient temperature +125 °C
• PCB mounting + 250 Faston

• AC or DC coil
• Available with: lockable test button, mechanical indicator and LED
• 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts
• Cadmium-free contacts
• For use with 97 Series sockets for printed circuit board, solder or for 35 mm rail (EN 60715) mountingwith push-in, spring or screwless terminals
• For use with 99 Series Coil Indication and EMC suppression modules and Type 86.30 timer modules
• Adaptors for alternative mount arrangements
• European patent

• Compliant with EN 45545-2 + A1: 2016 (protection against fire and smoke), EN 61373
  (resistance to shock and vibration, category 1, class B), EN 50155 (resistance to temperature and
  humidity, class TX)
• AC or DC coil with extended operating range
• Cadmium-free contacts (standard version)
• Contact material options
• For use with 97 Series sockets
• Coil Indication and EMC suppression modules
• Accessories: sockets and timed modules

• 1 CO 16 A
• Plug-in/187 Faston
• Available with: lockable test button, mechanical indicator & LED indicator
• 8 mm, 6 kV (1.2/50 μs) isolation, coil-contacts
• Cadmium-free contacts
• 99 series Coil Indication and EMC suppression modules and Timer module Type 86.30 options
• Optional alternative mounting adaptors
• European Patent

• Compliant with EN 45545-2 + A1: 2016 (protection against fire and smoke), EN 61373 (resistance to shock and vibration, category 1, class B), EN 50155 (resistance to temperature and humidity, class TX)
• AC or DC coil with extended operating range
• Cadmium-free contacts (standard version)
• Contact material options
• For use with 97 Series sockets
• Coil Indication and EMC suppression modules
• Accessories: sockets and timed modules

• DC coil
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

• AC or sensitive DC coil
• Coil Indication and EMC suppression module
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

• 2 CO 8 A
• Breaking capacity DC inductive (L/R=40 ms) :110 V = 0.5 A / 220 V = 0.2 A
• Screw terminals
• DC coils
• Identification label
• UL Listing (certain relay / socket combinations)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contact material

• DC coil – Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

• AC coils or DC sensitive coils
• Coil Indication and EMC suppression module as standard
• Identification label
• UL Listing (certain relay/socket combinations)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contact material available

• Coil indication and EMC suppression module as standard
• Identification label
• UL Listing (certain relay/socket combinations)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contact material

• DC coil
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

• AC or sensitive DC coil
• Coil Indication and EMC suppression module
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

• AC or sensitive DC coil
• Coil Indication and EMC suppression module
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

• AC or sensitive DC coil
• Coil Indication and EMC suppression module
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

Available in 48.61 version with screw terminals.

• AC or sensitive DC coil
• Coil Indication and EMC suppression module
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

Available in 48.62 version with screw terminals.

• High insulation between adjacent contacts
• Cadmium-free contacts
• 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts
• Flux proof: RT II

Also available in the following version:
Type 50.12… 5000, for safety applications, gold-plated contacts for switching low loads

• High insulation between adjacent contacts
• Cadmium-free contacts
• DC coil 800 mW
• 8 mm, 6 kV insulation between coil and contacts
• PCB mount
• Washable: RT III

• High insulation between adjacent contacts
• Cadmium-free contacts
• DC coil 800 mW
• 8 mm, 6 kV insulation between coil and contacts
• PCB mount
• Washable: RT III

• AC or DC coil
• Cadmium-free contacts
• Contact material options
• RT III version (washable) available

• AC or DC coil
• Cadmium-free contacts
• Contact material options
• RT III version (washable) available

• AC or DC coil
• Cadmium-free contacts
• Contact material options
• RT III version (washable) available

• AC or DC coil
• Lockable test button option and mechanical indicator as standard
• Variant with LED and integrated protection circuit
• For use with 94 Series sockets for printed circuit board, solder or for 35mm rail mount (EN 60715) with push-in, screw or screwless terminals
• For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
• Adaptors for alternative mount available
• UL Listing (relay/socket/jumper link)
• Cadmium-free contacts
• Contact material options
• European patent

• AC or DC coil
• Lockable test button and standard mechanical indicator on 2- and 4-contact Types
• Variant with LED and integrated protection circuit
• For use with 94 Series sockets for printed circuit board, solder or for 35mm rail mount (EN 60715) with push-in, screw or screwless terminals
• For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules adaptors for alternative mount available
• UL Listing (relay/socket/jumper link)
• Cadmium-free contacts
• Contact material optn

• AC or DC coil
• Lockable test button option and mechanical indicator as standard
• Variant with LED and integrated protection circuit
• Sockets Series 94 for printed circuit board, solder or for 35mm rail mount (EN 60715) with push-in, screw or screwless terminals
• 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
• Adaptors for alternative mount available
• UL Listing (relay/socket/jumper link)
• Cadmium-free contacts
• Contact material options
• European patent

• Compliant with EN 45545-2 + A1: 2016 (protection against fire and smoke), EN 61373 (resistance to shock and vibration, category 1, class B), EN 50155 (resistance to temperature and humidity, class TX)
• DC coil with extended operating range
• Cadmium-free contacts (standard version)
• For use with 94 Series sockets
• Coil Indication and EMC suppression modules
• Accessories (sockets and timed modules)

• Flange mounting possible using adaptor with 187 Faston, 4.8 x 0.5 mm connections
• AC or DC coil
• Lockable test button and mechanical indicator
• Cadmium-free contacts (standard version)
• Contact material options
• For use with 96 Series sockets
• For use with 99 Series coil indication and EMC suppression modules
• Accessories available
• European patent

Also available in:

Type 56.32-0300 (with 2 pole normally open contact (≥ 1.5 mm gap))

• Compliant with EN 45545-2 + A1: 2016 (protection against fire and smoke), EN 61373
  (resistance to shock and vibration, category 1, class B), EN 50155 (resistance to temperature and humidity, class TX)
• AC or DC coil with extended operating range
• Cadmium-free contacts (standard version)
• Contact material options
• Sockets Series 96
• Coil Indication and EMC suppression modules
• Accessories (sockets and timed modules)

• Flange mounting possible using adaptor with 187 Faston, 4.8 x 0.5 mm connections
• AC or DC coil
• Lockable test button and mechanical indicator
• Cadmium-free contacts (standard version)
• Contact material options
• For use with 96 Series sockets
• For use with 99 Series coil indication and EMC suppression modules
• Accessories available
• European patent

• Compliant with EN 45545-2 + A1: 2016 (protection against fire and smoke), EN 61373
  (resistance to shock and vibration, category 1, class B), EN 50155 (resistance to temperature and humidity, class TX)
• AC or DC coil with extended operating range
• Cadmium-free contacts (standard version)
• Contact material options
• Sockets Series 96
• Coil Indication and EMC suppression modules
• Accessories (sockets and timed modules)

• AC or DC coil
• Cadmium-free contacts (standard version)
• Contact material options

Also available in Type 56.42-0300, with 2 NO (gap ≥ 1.5 mm)

• AC or DC coil
• Cadmium-free contacts (standard version)
• Contact material options

•  AC or DC coil
•  Coil Indication and EMC suppression module
•  Identification label
•  UL Listing (relay/socket/jumper link)
•  35 mm rail (EN 60715) mounting
•  Cadmium-free contacts

• AC or DC coil
• Coil Indication and EMC suppression module
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

• AC or DC coil
• Coil Indication and EMC suppression module
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

• AC or DC coil
• Coil Indication and EMC suppression module
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

Also available IECEx/Atex/HazLoc versions.

• AC or DC coil
• Coil Indication and EMC suppression module
• Identification label
• UL Listing (relay/socket/jumper link)
• 35 mm rail (EN 60715) mounting
• Cadmium-free contacts

Also available IECEx/ATEX/HazLoc versions.

• 2 CO contacts
• Cadmium-free contacts (standard version)
• AC or DC coil
• UL Listing (relay/socket/jumper link)
• Contact material options
• Lockable test button and mechanical indicator (standard version)
• For use with 90 Series sockets
• For use with 99 Series coil indication and EMC suppression modules
• For use with 86 Series timer modules
• European patent

Features include:
– 3 CO contacts
– Cadmium-free contacts (standard version)
– AC or DC coil
– UL Listing (relay/socket/jumper link)
– Contact material options
– Lockable test button and mechanical indicator (standard version)
– For use with 90 Series sockets
– For use with 99 Series coil indication and EMC suppression modules
– For use with 86 Series timer modules
– European patent

• 2 pole, 10 A power contacts
• Flange mount
• 187 Faston connections
• AC coils & DC coils
• Cadmium-free contacts
• Au plated contact option

• 3 pole, 10 A power contacts
• Flange mount
• 187 Faston connections
• AC coils & DC coils
• Cadmium-free contacts
• Au plated contact option

• AC or DC coil
• Reinforced insulation between coil and contacts according to EN 60335-1; creepage and clearance of 8/6 mm
• Variant with SELV separator between coil and contacts
• Cadmium-free contact material –

• AC or DC coil
• Reinforced insulation between coil and contacts according to EN 60335-1; creepage and clearance of 8/6 mm
• Variant with SELV separator between coil and contacts
• Cadmium-free contact material variant

• Coil nominal voltages 12, 24, 110, 125, 220 V DC
• With magnetic blow-out feature
• Contact gap > 4 mm
• Coil power 1.3 W
• 6kV Insulation between coil and contacts
• AgSnO2 contacts
• Operating temperature –40… + 70 ° C

Features include:

– Mounting on 92 Series sockets or directly via Faston 187 (4.8 x 0.5 mm)
– AC or DC coil
– UL Listing (relay/socket/jumper link)
– LED, lockable test button and standard mechanical indicator
– Reinforced insulation between coil and contacts
according to EN 60335-1; creepage and clearance of 8/6 mm
– Variant with SELV separator between coil and contacts
– Cadmium-free contact material variant
– Sockets and accessories
– European patent

• Mounting on sockets (92 Series) or directly via Faston 187 (4.8 x 0.5 mm)
• AC or DC coil
• UL Listing (relay/socket/jumper link)
• LED, lockable test button and standard mechanical indicator
• Reinforced insulation between coil and contacts according to EN 60335-1; creepage and clearance of 8/6 mm
• Variant with SELV separator between coil and contacts
• Cadmium-free contact material variant
• Sockets and accessories
• European patent

• AC coils & DC coils
• LED, mechanical indicator & test button options
• Reinforced insulation between coil and contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance
• SELV coil-contact separator option
• Cadmium-free contact material option
• European Patent

• AC coils & DC coils
• LED, mechanical indicator & test button options
• Reinforced insulation between coil and contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance
• SELV coil-contact separator option
• Cadmium-free contact material options
• European Patent

• AC or DC coil
• Cadmium-free contact material variant

• Bifurcated terminals
• AC coils & DC coils
• Cadmium-free option available

• Reinforced insulation between coil and contacts according to EN 60335-1; creepage and clearance distances of 8 mm
• AC or DC coil
• Variant with Cadmium-free contacts
• Version compliant with ATEX/HazLoc Ex nC directive

• Reinforced insulation between coil and contacts according to EN 60335-1; 8 mm creepage and clearance distances
• AC coils & DC coils
• Cadmium-free option available

• Distance between open contacts ≥ 3 mm, in accordance with VDE 0126-1-1, EN 62109-1, EN 62109-2
• DC coil, with holding power of only 170 mW
• Cadmium-free contacts:
• AgNi version (for applications where low contact resistance is required)
• AgSnO2 version (for applications where there is a high inrush current)
• Reinforced insulation between coil and contacts according to EN 60335-1; 8 mm creepage and clearance distances
• AC coils & DC coils
• Cadmium-free option available

• Distance between open contacts ≥ 3 mm, in accordance with VDE 0126-1-1, EN 62109-1, EN 62109-2
• DC coil, with holding power of only 170 mW
• Reinforced insulation between coil and contacts
• Meets the requirements of the EN 60335-1 standard relating to heat and fire resistance (GWIT 775 ° C and GWFI 850 ° C)
• Cadmium-free contacts:
• AgNi version (for applications where low contact resistance is required)
• AgSnO2 version (for applications where there is a high inrush current)

• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)
• Cadmium free-contacts

• 2 NO 100 A + 1 NC 3 A
• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)
• Cadmium free-contacts

• 4 NO 40 A
• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)
• Cadmium free-contacts

• 4 NO 40 A + 1 NC 3 A
• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)
• Cadmium free-contacts

• 4 NO 32 A
• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)
• Cadmium free-contacts

• 4 NO 32 A
• 1 NC 3 A
• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)
• Cadmium free-contacts

• Positive safety logic (make output contact opens when the measured value is out of limits)
• All functions and rating can be easily set using the front face selector and trimmer
• “Blade + cross” – both flat blade and cross head screwdrivers can be used to select the function, adjust the trimmer and release the rail clip
• Clear and immediate identification of the status through colored LEDs
• 1 changeover output contact – rated 10 A
• Modular, 17.5 mm wide
• 35 mm rail (EN 60715) mounting
• Cadmium-Free ContactsV

• Positive safety logic (make output contact opens when the measured value is out of limits)
• All functions and rating can be easily set using the front face selector and trimmer
• “Blade + cross” – both flat blade and cross head screwdrivers can be used to select the function, adjust the trimmer and release the rail clip
• Clear and immediate identification of the status through colored LEDs
• 1 changeover output contact – rated 6 A
• Modular, 35 mm wide
• 35 mm rail (EN 60715) mounting
• Cadmium-Free Contacts

• Detects phase failure even in the presence of regenerated voltages
• Positive safety logic (make output contact opens when the measured value is out of limits)
• All functions and rating can be easily set using the front face selector and trimmer
• “Blade + cross” – both flat blade and cross head screwdrivers can be used to select the function, adjust the trimmer and release the rail clip
• Clear and immediate identification of the status through colored LEDs
• 1 changeover output contact – rated 6 A

• Detects phase failure error even in the presence of regenerated voltages
• Positive safety logic (make output contact opens when the measured value is out of limits)
• All functions and values ​​can be easily set using the selectors and front regulators
• “Blade + cross” – both flat blade and cross head screwdrivers can be used to select the function, adjust the trimmer and release the rail clip
• Clear and immediate identification of the status through colored LEDs
• 2 changeover contacts 8 A
• Modular, 35 mm

• 1 CO relay output 10 A
• Positive safety logic
• All functions and values can be easily adjusted by the selector and trimmer on front face
• Colored LEDs for clear & immediate visual indication
• 35 mm rail (EN60715) mount

• Universal use (systems with UN from 208 V to 480 V, 50/60 Hz)
• Detects phase failure error even in the presence of regenerated voltages
• Positive safety logic (the output relay contact opens in case of error detection)
• 1 changeover output contacts rated 6 A
• Modular, 17.5mm wide
• 35 mm rail mounting (EN 60715)
• European patent filed for the innovative principle underlying the 3-phase monitoring and error detection system

• ompliant with EN 45545-2 + A1: 2016 standards (protection against fire and smoke), EN 61373 (resistance to shock and vibration, category 1,
  class B), EN 50155 (temperature resistance and humidity, class T1)
• Universal use (systems with UN from 208 V to 480 V, 50/60 Hz
• Detects phase failure error even in presence of regenerated voltage
• Positive safety logic (the relay contact output opens in case of error detection)
• 2 versions:
  • 1 changeover, 6 A (17.5 mm wide)
  • 2 changeover, 8 A (width 22.5 mm)

• Universal use (systems with UN from 208 V to 480 V, 50/60 Hz)
• Detects phase failure error even in the presence of regenerated voltages
• Positive safety logic (make output contact opens when the measured value is out of limits)
• 2 changover output contact rated 8 A
• Modular, 35mm wide
• 35 mm rail (EN 60715) mounting

• Compliant with EN 45545-2 + A1: 2016 standards (protection against fire and smoke), EN 61373 (resistance to shock and vibration, category 1,
  class B), EN 50155 (temperature resistance and humidity, class T1)
• Universal use (systems with UN from 208 V to 480 V, 50/60 Hz)
• Detects phase failure error even in presence of regenerated voltage
• Positive safety logic (the relay contact output opens in case of error detection)
• 2 versions:
  • 1 changeover, 6 A (17.5 mm wide)
  • 2 changeover, 8 A (width 22.5 mm)

• PTC VDE DIN 0660 part 303
• 35 mm rail (EN 60715) mount

• Filling and emptying functions
• LED indicator
• Double insulation (6 kV – 1.2 / 50 µs) between:
  – power supply and contacts
  – probes and power supply
  – contacts and probes
• Assembly on 35 mm rail (EN 60715)
• Control of a single level or two levels Min / Max

• Filling and emptying functions
• LED indicator
• Double insulation (6 kV – 1.2/50 µs) between:
– Power supply and contacts
– Probes and power supply
– Contacts and probes
• 35 mm rail (EN 60715) mounting
• Control of about a single level or between Min/Max levels

• Supply voltage: 110 … 240 V and 24 V AC/DC
• Modular relay, 35 mm wide
• 35 mm rail (EN 60715)
• Cadmium-free contacts

• Emptying or filling functions (6 functions)
• Control about a single level, between Min./Max. limits or Windows mode
• Adjustable sensitivity (5…150) kΩ
• LED indicator
• Reinforced insulation (6 kV – 1.2/50 μs)
between:
– supply and contacts
– electrodes and supply
– contacts and electrodes
• 35 mm rail (EN 60715) mount

• Changeover contact
• 10 A (resistive load)
• 8 A (inductive load)
• Double sealed chambers resistant to high pressure
• Cable length 5 m, 10 m, 15 m or 20 m
• Can be used for both emptying and filling applications
• AgNi contact material

• 1 changeover contact
• 10 A (resistive load)
• 8 A (inductive load)
• Triple sealed chamber resistant to high pressure
• Cable length 5 m, 10 m, 15 m or 20 m
• Can be used for both emptying and filling applications
• AgNi contact material

• 1 CO contact rated 10 A 250 V AC
• Magnetic opening and closing contact
• Cable length 2m
• Particularly suitable for clean water emptying and filling applications

• Low consumption in stand-by (<0.4 W)
• Internal thermal protection with output shutdown
• Short circuit protection: Hiccup mode (automatic reset)
• Overvoltage protection: Varistor
• Flyback circuit technology
• Compliant with EN 60950-1 and EN 61204-3
• Parallel connection for automatic redundancy with OR-IN diode
• Dual polarity and serial connection possible
• 35 mm rail (EN 60715) mounting
• The following version is also available: 78.12… .1200 with 12 V DC output, 12 W

• High efficiency (up to 93%)
• Low consumption in stand-by (less than 1 W)
• Short circuit protection: Hiccup mode (automatic reset)
• Overvoltage protection: Varistor
• Compliant with EN 60950-1 and 61204-3
• Parallel connection for higher load current (with OR diode)
• Dual and serial connection possible
• 35 mm rail (EN 60715) mounting

• High efficiency (up to 93%)
• Low consumption in stand-by (less than 1 W)
• LLC
• Short circuit protection: Hiccup mode (automatic reset)
• Input fuse: Easily replaceable, with spare immediately to hand
• Overvoltage protection: Varistor
• Compliant with EN 60950-1 and 61204-3
• Parallel connection for higher load current with OR diode)
• Dual polarity and serial connection possible
• 35 mm rail (EN 60715) mounting

• Fold-Back technology for battery charging and parallel operation to increase the load current
• Low consumption in stand-by (less than 1 W)
• Overload protection: Fold-back mode
• Short circuit protection: Hiccup mode (automatic reset)
• Input fuse: Easily replaceable, with spare immediately to hand
• Overvoltage protection: Varistor
• Compliant with EN 60950-1 and 61204-3
• Parallel connection for higher load current (with OR diode)
• Dual polarity and serial connection possible
• 35 mm rail (EN 60715) mounting

• Low consumption in stand-by (<0.4 W)
• Internal thermal protection, with output shutdown
• Short circuit protection: Hiccup mode (automatic reset)
• Overvoltage protection: Varistor
• Flyback circuit technology
• Compliant with EN 60950-1 and EN 61204-3
• Parallel connection for automatic redundancy with OR-IN diode
• Dual polarity and serial connection possible
• 35 mm rail (EN 60715) mounting

• High efficiency (up to 93%)
• Low consumption in stand-by (less than 1 W)
• LLC (78.1B) or forward topology (78.1D)
• Short circuit protection: Hiccup mode (automatic reset)
• Input fuse: Easily replaceable, with spare immediately to hand
• Overvoltage protection: Varistor
• EN 60950-1 and 61204-3 compliant
• Parallel connection for higher load current (with OR diode)
• Dual polarity and serial connection possible – 35 mm rail (EN 60715) mounting

• High efficiency (up to 93%)
• Low consumption in stand-by
• Forward circuit Type
• Overload indication: with pre-alarm via LED plus auxiliary contact
• Overload up to 20 A
• Short circuit protection: Hiccup mode (automatic reset)
• Input fuse: easily replaceable and equipped with a spare fuse
• Overvoltage protection: Varistor
• Compliant with EN 60950-1 and 61204-3
• Parallel connection for higher load current (with OR diode)
• Dual and serial connection
• 35 mm rail (EN 60715) mounting Type 78.2E

• 30 V DC 640 mA output, KNX bus
• Status LED indicator
• 72 mm (4 modules) wide
• 35 mm rail (EN 60715) mounting
• Compatible with ETS 4 (or higher)

• High efficiency (up to 91%)
• Low consumption in stand-by (<0.4 W)
• Internal thermal protection, with output shutdown
• Short circuit protection: Hiccup mode (automatic reset)
• Input fuse: Easily replaceable, with spare immediately to hand
• Overvoltage protection: Varistor
• Flyback circuit technology
• ZVS (Zero-voltage-switching) quasi-resonant technology
• Compliant with EN 60950-1 and EN 61204-3
• Small size: 70 mm (4 modules) wide, 61 mm deep
• 35 mm rail (EN 60715) mounting

• High efficiency (up to 91%)
• Low consumption in stand-by (<0.3 W)
• Internal thermal protection, with output shutdown
• Short circuit protection: Hiccup mode (automatic reset)
• Overvoltage protection: Varistor
• Flyback circuit type
• ZVS (Zero-voltage-switching) with quasi-resonant technology
• Compliant with EN 60950-1 & EN 61204-3 standards
• Parallel connection for automatic redundancy with OR-IN diode
• Small size: 70 mm (4 modules) wide, 61 mm deep
• Suitable for 35 mm rail (EN 60715) mounting

• High efficiency (up to 91%)
• Low consumption in stand-by (<0.4 W)
• Overload protection: Fold-back mode
• Input fuse: Easily replaceable, with spare immediately to hand
• Overvoltage protection: Varistor
• Flyback circuit technology
• ZVS (Zero-voltage-switching) quasi-resonant technology
• EN 60950-1 and EN 61204-3 compliant
• Parallel connection for greater load current (with OR diode)
• Dual polarity and serial connection possible
• Small size: 70 mm (4 modules) wide, 60 mm deep
• 35 mm rail (EN 60715) mounting

• 24 V DC, 60 W output
• High efficiency (up to 91%) Low (< 0.3 W) stand-by power consumption
• Thermal protection: internal, with Vout shutdown – power OFF to reset
• Short circuit protection: Hiccup (auto-recovery) mode
• Overvoltage protection: Varistore
• Flyback topology, ZVS (Zero-voltage-switching), quasi-resonant mode switching
• Compliant with EN 60950-1 and EN 61204-3
• Compact size: 70 mm (4-module) wide, 61 mm deep

• 24 V DC, 60 W output
• Output adjustable between 24-28 V
• High efficiency (up to 91%)
• Low (< 0.4 W) stand-by power consumption
• Input fuse: Easily replaceable plus spare
• Overvoltage protection: Varistor
• Flyback topology
• Compliant with EN 60950-1 and EN 61204-3
• Compact size: 70 mm (4-module) wide, 60 mm deep

• Compliant with EN 62053-21 and EN 50470 standards
• PTB approval
• Accuracy class B
  – Protection category II
  – Impulse S0 interface compliant with EN 62053-31 for remote energy control
  – Accessories: sealable terminal covers
  tamper
• 35 mm rail (EN 60715) mounting

Available in the version:
7E.36.8.400.0012 – Double tariff (e.g. day and night)

• Compliant with EN 62053-21 and EN 50470 (Physikalisch – Technischen Bundesanstalt)
• Accuracy class 1/B
• Protection category II
• Pulse S0 interface compliant with EN 62053-31 for remote energy control
• Accessories: sealable tamper-proof terminal covers
• Small size
• 35 mm rail (EN 60715) mounting

• Compliant with EN 62053-21 and EN 50470 (Physikalisch – Technischen Bundesanstalt)
• PTB approval (7E.13 and 7E.16) (Physikalisch – Technischen Bundesanstalt)
• Accuracy class 1/B
• Protection category II
• Pulse S0 interface compliant with EN 62053-31 for remote energy control
• Accessories: sealable tamper-proof terminal covers
• Small size
• 35 mm rail (EN 60715) mounting

• Compliant with EN 62053-21 and EN 50470 standards
• PTB approval
• Accuracy class 1/B
• Protection category II
• Impulse S0 interface compliant with EN 62053-31 for remote energy control
• Small size
• 35 mm rail (EN 60715) mounting

Accessories: tamper-proof sealable terminal cover.

• 7E.64.8.230.0001 Reference current 5 A (40 A Max), 1-phase 230 V AC, kWh+instantaneous voltage & kW, V, backlit LCD display
• 7E.64.8.230.0010 Reference current 5 A (40 A Max), 1-phase 230 V AC, kWh/kVAh/kvarh+instantaneous V, A, PF, kW, kVA, kvar & Hz, MID certified, backlit LCD display
• 7E.64.8.230.0310 Reference current 5 A (40 A Max), M-Bus integrated interface, 1-phase 230 V 50/60 Hz, MID certified, backlit LCD display

• 7E.78.8.400.0112 Reference current 5 A (80 A Max), 3-phase systems–3/4 wire, Dual tariff, MID certified
• 7E.78.8.400.0212 Reference current 5 A (80 A Max), RS485 Modbus integrated interface, 3-phase systems–4 wire, Dual tariff, MID certified
• 7E.78.8.400.0312 Reference current 5 A (80 A Max), M-Bus integrated interface, 3-phase systems programmable 3/4 wire, Dual tariff, MID certified
• 7E.78.8.400.0410 Reference current 5 A (80 A Max), Ethernet Modbus TCP integrated interface, 3-phase systems, 4 wire

• 7E.86.8.400.0112. Reference current 1 A (6 A Max), 3-phase systems – 3 or 4 wire, Usable with current transformer*, Programmable CT secondary*, Dual tariff, MID certified
• 7E.86.8.400.0212. Reference current 1 A (6 A Max), RS485 Modbus integrated interface, 3-phase systems – 4 wire, Usable with current transformer*, Programmable CT secondary*, Dual tariff, MID certified
• 7E.86.8.400.0410. Reference current 1 A (6 A Max), Ethernet Modbus TCP integrated interface, 3-phase systems – 4

• 4 MID certified counters for imported and exported active and reactive energy
• 8 resettable counters for active, reactive, absolute apparent, imported and exported energy
• Extensive real-time measurement capability: V, I, Pf, f, voltage and current THD and operating run-time for preventive maintenance activities
• Communication protocols M-bus and Modbus RS485

• Direct connection up to 80 A, double tariff, double S0 pulse output
• 2 MID certified meters for active energy + 2 for reactive energy (national certification), 16 resettable meters
• Active energy accuracy class: Class B according to EN 50470-3 (MID)
• Reactive energy accuracy class: Class 2 according to EN 62053-23
• Protection category II

• SPD suitable for low voltage systems for protection against overvoltages caused by direct discharges, induced and operating overvoltages
• To be installed on the border between zones LPZ 0 and LPZ 1
• Extremely low residual voltage
• Replaceable modules
• Upside down mount technology
• Double screw terminal
• Connector (07P.01) included in the package
• In accordance with EN 61 643-11
• 35 mm rail (EN 60715) mounting, 36 mm per pole

• SPD suitable for low voltage systems for protection against overvoltages caused by direct discharges, induced and operating overvoltages
• To be installed on the border between zones LPZ 0 and LPZ 1
• Visual indicator of the varistor status: functional/to be replaced
• Double screw terminal
• Signaling with remote contact of the varistor status: presence, functioning, to be replaced. Connector (07P.01) included in the package
• In accordance with EN 61 643-11
• 35 mm rail (EN 60715) mounting, 36 mm per pole

• SPD suitable for low voltage systems for protection against overvoltages caused by direct discharges, induced and operating overvoltages
• To be installed on the border between zones LPZ 0 and LPZ 1
• Visual indicator of the varistor status: functional/to be replaced
• Double screw terminal
• Signaling with remote contact of the varistor status: presence, functioning, to be replaced
• Connector (07P.01) included in the package
• In accordance with EN 61 643-11
• 35 mm rail (EN 60715) mounting, 36 mm per pole

• SPD suitable for low voltage systems for protection against overvoltages caused by direct discharges, induced and operating overvoltages
• Direct connection up to 80 A, double tariff, double S0 pulse output
• 2 MID certified meters for active energy + 2 for reactive energy (national certification), 16 resettable meters
• Active energy accuracy class: Class B according to EN 50470-3 (MID)
• Reactive energy accuracy class: Class 2 according to EN 62053-23
• Protection category II

• SPD suitable for low voltage systems for protection against overvoltages caused by direct discharges, induced and operating overvoltages
• To be installed on the border between zones LPZ 0 and LPZ 1
• Combination of high-performance varistors and gas spark gaps (GDT) which ensure:
  • high discharge currents
  • high insulation resistance which eliminates the leakage current
  • absence of subsequent follow-on current
• In accordance with EN 61 643-11
• 35 mm rail (EN 60715) mounting, 36 mm per pole

• SPD suitable for low voltage systems for protection against overvoltages caused by direct discharges, induced and operating overvoltages
• To be installed on the border between zones LPZ 0 and LPZ 1
• Combination of high-performance varistors and gas spark gaps (GDT) which ensure:
  • high discharge currents
  • high insulation resistance which eliminates the
  leakage current
  • absence of subsequent follow-on current
• Extremely low residual voltage
• Replaceable modules
• 35 mm rail (EN 60715) mounting, 36 mm per pole

• SPD suitable for 230/400 V AC systems for protection against overvoltages caused by direct/indirect discharges
• To be installed on the border between zones LPZ 0 & LPZ 1
• Low Up values for the protection of sensitive equipment
• Visual indicator of the varistor status–functioning/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package
• Varistor & spark gap modules, replaceable
• Compliant with EN 61 643-11
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• SPD suitable for 230/400 V AC systems for protection against overvoltages caused by direct or indirect discharges
• To be installed on the border between zones LPZ 0 & LPZ 1
• Low Up values for the protection of sensitive equipment
• Visual indicator of varistor status – functioning/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package
• Replaceable varistor & spark gap modules
• Compliant with EN 61 643-11
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• SPD suitable for 230/400 V AC systems for protection against overvoltages caused by direct or indirect discharges
• To be installed on the border between zones LPZ 0 and LPZ 1
• Low Up values ​​for the protection of sensitive equipment
• Visual indicator of the varistor status – functioning/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the
  package
• Replaceable varistor modules
• Compliant with EN 61 643-11
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• SPD suitable for 230/400 V AC systems for protection against overvoltages caused by direct or indirect discharges
• To be installed on the border between zones LPZ 0 and LPZ 1
• Low Up values for the protection of sensitive equipment
• Visual indicator of the varistor status – functioning/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the
  package
• Replaceable varistor modules
• Compliant with EN 61 643-11
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• Suitable for AC and DC systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Visual indicator of the varistor status – functional/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the
  packaging (depending on version)
• Varistor and spark gap modules, replaceable
• Compliant with EN 61643-11: 2012
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• Suitable for AC and DC systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Visual indicator of the varistor status – functional/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package (depending on the version)
• Varistor and spark gap modules, replaceable
• Compliant with EN 61643-11: 2012
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• Suitable for 230 V/400 V systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Visual indicator of the varistor status – functional/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package (depending on the version)
• Replaceable varistor and spark gap modules
• Compliant with EN 61643-11: 2012
• 35 mm rail (EN 60715) mounting

• Visual indicator of the varistor status – in the event of a fault
• Signaling with remote contact of the varistor status in case of failure
• Connector (07P.01) included in the package (depending on the version)
• Replaceable modules
• Compliant with prEN 50539-11: 2012
• 35 mm rail (EN 60715) mounting

Also available in the version 7P.23.9.500.1015

• Suitable for 230 V/400 V systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Visual indicator of the varistor status – functional/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package (depending on the version)
• Replaceable varistor and spark gap modules
• Compliant with EN 61643-11: 2012
• 35 mm rail (EN 60715) mounting

• Suitable for 230 V/400 V systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Visual indicator of the varistor status – functional/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package (depending on the version)
• Replaceable varistor and spark gap modules
• Compliant with EN 61643-11: 2012
• 35 mm rail (EN 60715) mounting

• Visual indicator of the varistor status – in the event of a fault
• Signaling with remote contact of the varistor status in case of failure. Connector (07P.01) included in the package (depending on the version)
• Replaceable modules
• Compliant with prEN 50539-11: 2012
• 35 mm rail (EN 60715) mounting

• Visual indicator of the varistor status – in the event of a fault
• Signaling with remote contact of the varistor status in case of failure
• Connector (07P.01) included in the package (depending on the version)
• Replaceable modules
• Compliant with prEN 50539-11: 2012
• 35 mm rail (EN 60715) mounting

Also available in the version 7P.26.9.000.x015

• Suitable for AC and DC systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Visual indicator of the varistor status – functional/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package (depending on the version)
• Varistor and spark gap modules, replaceable
• Compliant with EN 61643-11: 2012
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• Protects sensitive electrical and electronic devices from impulse overvoltages
• 1 + 1 configuration between varistor and spark gap (without leakage current)
• Compliant with EN 61643-11: 2012

• Protects sensitive electrical and electronic devices from impulse overvoltages
• “1 + 1” configuration between varistor and spark gap (without leakage current), also designed for the protection of LED lamps
• Compliant with EN 61643-11: 2012

• Protects sensitive electrical and electronic devices from impulse overvoltages
• Compliant with EN 61643-11: 2012

• Protects sensitive electrical and electronic devices from impulse overvoltages
• 1 + 1 configuration for a low Up value (residual voltage).
• Compliant with EN 61643-11: 2012

• Suitable for AC systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Extremely low residual voltage
• Visual indicator of the varistor status – functional/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package
• Replaceable modules
• Compliant with EN 61643-11: 2012
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• Suitable for AC systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Extremely low residual voltage
• Visual indicator of the varistor status – functional/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package
• Replaceable modules
• Compliant with EN 61643-11: 2012
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• Suitable for AC systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Combination of high-performance varistors and gas spark gaps (GDT) which ensure: – high discharge currents – high insulation resistance which eliminates the leakage current – absence of subsequent follow-on current
• Extremely low residual voltage
• Replaceable modules
• Compliant with EN 61643-11: 2012
• Mounting on 35 mm rail (EN 60715), 17.5 mm per pole

• Suitable for AC systems/applications for protection against induced and switching overvoltages
• To be installed on the border between zones LPZ 1 and LPZ 2
• Extremely low residual voltage
• Visual indicator of the varistor status – functional/to be replaced
• Signaling with remote contact of the varistor status. Connector (07P.01) included in the package
• Replaceable modules
• Compliant with EN 61643-11: 2012
• 35 mm rail (EN 60715) mounting, 17.5 mm per pole

• Suitable for the protection of data lines and 2-wire telecommunication
• Serial connection; optimizing the end of line protection from longitudinal (line-PG) and transverse (line-line) overvoltages
• Compliant with EN 61643-21 + A1, A2: 2013, EN IEC61643-21 + A1, A2: 2012 C2, C3
• 35 mm rail (EN 60715) mounting Also available in the version 7P.62.9.036.0005 – suitable for protection of fire systems, telecommunication interfaces and 2-wire data line

• Suitable for Ethernet lines with Cat 6 cabling, PoE (Power over Ethernet), and power lines data transmission up to 250 MHz
• Protection for all pairs of conductors with D437attenuation
• Aluminum frame and shielded metal RJ45 connectors
• Accessories included for a simple installation near the equipment from
  protect, on the border LPZ 2-3 (Class 3)
• Compliant with EN 61643-21
• Possibility of mount on 35 mm DIN rail

• Relays with guided contacts Type A according to EN 61810-3 (ex EN 50205) for applications of safety
• For the functional safety of machines and systems according to EN 13849-1
• For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155
• Versions with DC and AC power supply
• 24 and 110 V DC versions with extended operating range (0.7… 1.25) UN
• Indication LED
• 35 mm rail (EN 60715)

• Relays with guided contacts Type A according to EN 61810-3 (ex EN 50205) for applications of safety
• For the functional safety of machines and systems according to EN 13849-1
• For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155
• Versions with DC and AC power supply
• 24 and 110 V DC versions with extended operating range (0.7… 1.25) UN
• Indication LED
• 35 mm rail (EN 60715)

• Relay with guided contacts Type A according to EN 61810-3 (ex EN 50205) for safety applications
• For the functional safety of machines and systems according to EN 13849-1
• For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155
• Versions for DC and AC power supplies – 24 and 110 V DC versions with extended operating range (0.7… 1.25) UN – Indication LED – 35 mm rail

• Relays with guided contacts Type A according to EN 61810-3 (ex EN 50205) for applications of safety
• For the functional safety of machines and systems according to EN 13849-1
• DC coil
• Cadmium-free contacts
• 17.5 mm wide
• Indication LED
• 35 mm rail (EN 60715) mounting

• Relays with guided contacts Type A according to EN 61810-3 (ex EN 50205) for applications of safety
• For the functional safety of machines and systems according to EN 13849-1
• For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155
• Versions with DC and AC power supply
• 24 and 110 V DC versions with extended operating range (0.7… 1.25) UN
• Indication LED
• 35 mm rail (EN 60715)

• Relays with guided contacts Type A according to EN 61810-3 (ex EN 50205) for applications of safety
• For the functional safety of machines and systems according to EN 13849-1
• For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155
• Versions with DC and AC power supply
• 24 and 110 V DC versions with extended operating range (0.7… 1.25) UN
• Indication LED
• 35 mm rail (EN 60715)

• Relay with guided contacts Type A according to EN 61810-3 (ex EN 50205) for safety applications
• For the functional safety of machines and systems according to EN 13849-1
• For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155
• Versions for DC and AC power supplies – 24 and 110 V DC versions with extended operating range (0.7… 1.25) UN – Indication LED – 35 mm rail

• Relay with guided contacts Type A according to EN 61810-3 (ex EN 50205) for applications of safety up to SIL3
• Double channel architecture system (1oo2) with two NO contacts, 1 feedback contact and 1 auxiliary contact
• SIL3 evaluated according to EN 61508 for functional safety applications in accordance with EN 62061 up to SIL3 and according to IEC 13849-1 up to PL e
• 12 and 110 V DC versions with operating range (0.85… 1.1) UN
• Indication LED
• 35 mm rail (EN 60715) mounting

• Relay with guided contacts Type A according to EN 61810-3 (ex EN 50205) for applications of safety up to SIL3
• Double channel architecture system (1oo2) with two NO contacts, 1 feedback contact and 1 auxiliary contact
• SIL3 evaluated according to EN 61508 for functional safety applications in accordance with EN 62061 up to SIL3 and according to IEC 13849-1 up to PL e
• 12 and 110 V DC versions with operating range (0.85… 1.1) UN
• Indication LED
• 35 mm rail (EN 60715) mounting

• Rated voltage 110 … 240 V AC/DC
• Temperature control range from +10 ° to + 60 ° C
• Humidity control range up to 90%
• LED status indicator
• 35 mm rail (EN 60715) mounting

• Very low acoustic noise
• Minimal depth within enclosure
• Air volume (14…470) m³/h (with Exhaust Filter installed in cabinet)
• Air volume (24…630) m³/h (free flow)
• Operating voltage: 24 V DC, 120 V AC, 230 V AC

• Minimal depth required within the cabinet/electrical panel
• Savings in installation and maintenance time
• Internal filter easily replaceable

Available in versions:
7F.02.0.000.2000 for fan with filter 7F.20.x.xxx.2055, size 2
7F.02.0.000.3000 for fan with filter 7F.20.x.xxx.3100, size 3

Type 7F.03 Exhaust Filter for cabinets and switchboards – for external use. Time saving installation and maintenance.

Air volume and sizes, depending on models.

• Extremely low noise
•  Compact
• Air volume 24, 55 and 100m3/h (free flow)
• Internal filter easily replaceable

Allows an air volume of 24 m3/h (with exhaust filter installed in the cabinet/electrical panel).

The filter fan is also available in other versions:
7F.20.8.xxx.2055 with air volume 55 m3/h, nominal power 28 W size 2
7F.20.8.xxx.3100 with air volume 100 m3/h, nominal power 28 W size 3

Reverse flow Filter Fan – for indoor use.

Type 7F.30 Filter Fans for cabinets and switchboards – for outdoor use. Time saving installation and maintenance.

Air volume and sizes, depending on models.

Reverse flow Filter Fan – for outdoor use.

• Supply voltage (110… 230) V AC/DC
• Heating system with self-regulating PTC
• 35 mm rail (EN 60715) mounting

Also available in the following versions:
– 7H.51.0.230.0050 (Heating power 50 W)
– 7H.51.0.230.0100 (Heating power 100 W)
– 7H.51.0.230.0150 (Heating power 150 W)
– 7H.51.8.230.0250 (Heating power 250 W)
– 7H.51.8.230.0400 (Heating power 400 W)

• 600 lumens
• Direct magnetic mounting or through a screw-fixed metallic support
• Low power consumption
• Radiation angle 120°
• Light colour 5000 K
• Push-in terminals for the connection to a single unit
• Plug-in terminals for the connection to a single or multiple units (up to 7 lamps)
• Design by Minelli – Fossati

• 1200 lumens
• Direct magnetic mounting or through a screw-fixed metallic support
• Low power consumption
• Radiation angle 120°
• Light colour 5000 K
• Push-in terminals for the connection to a single unit
• Plug-in terminals for the connection to a single or multiple units (up to 7 lamps)
• Design by Minelli – Fossati

•  230 V AC (50/60 Hz)
•  Nominal current: 16A
•  Width 45 mm
•  Assembly on 35 mm DIN rail (EN 60715)

•  Suitable for French systems
•  230 V AC (50/60 Hz)
•  Nominal current: 16 A
•  Width 45 mm
•  Assembly on 35 mm DIN rail (EN 60715)
