PLA PRODUCT LIST

PLUGIN RELAYS

MPC

Terminal Type:- Plug InContact configuration :- 1C, 2C & 3C

Contact rating:- 5A, 10A, 12A & 16A resistive at 24 VDC/250 VAC

PMY & PMY F

Terminal Type:- Plug InContact configuration :- 2C, 3C & 4C

Contact rating:- 6A & 10A resistive at 24 VDC/250 VAC

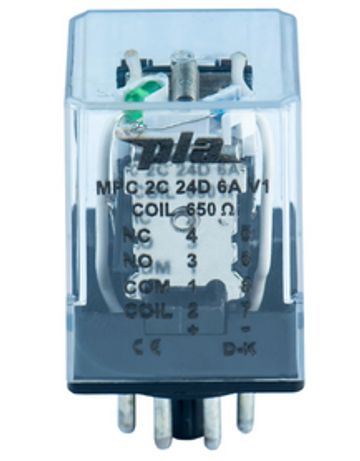

MPC V1

Terminal Type:- Plug InContact configuration :- 1C / 2C / 3C

Contact rating:- 6A & 10A @24VDC/ 250VAC & 220VDC

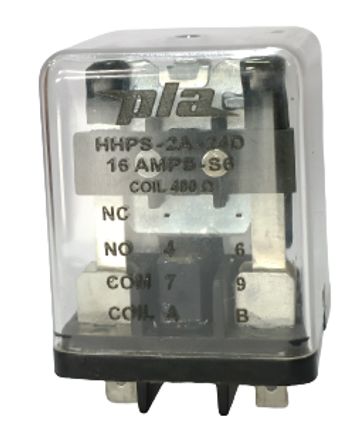

HPS

Terminal Type:- Plug InContact configuration :- 1C/2C/3C

Contact rating:- Upto 16 Amps

PLY

Terminal Type:- Plug InContact configuration :- 2C & 4C

Contact rating:- 10A resistive at 24 VDC/250 VAC

MPCN

Terminal Type:- Plug InContact configuration :- 1C & 2C

Contact rating:- 12A & 7A resistive at 30 VDC/250 VAC

PMCM

Terminal Type:- Plug In/PCBContact configuration :- 1C & 2C

Contact rating:- 12A, 16A & 8A resistive at 30 VDC/250 VAC

SMP

Terminal Type:- Plug InContact configuration :- 1C

Contact rating:- 6A resistive at 30 VDC/250 VAC

ON - OFF RELAY

Terminal Type:- PlugInContact configuration :- 2N/O + 1N/C & 2N/C + 1N/O

Contact rating:- 10A resistive at 24 VDC/250 VAC

LMPC (Latching Relays)

Terminal Type:- PlugInContact configuration :- 2C

Contact rating:- 10A resistive at 24 VDC/250 VAC

PSR(Safety Relay)

Terminal Type:- Plug InContact configuration :- 2NO+2NC & 3NO+1NC

Contact rating:- 6A resistive @30VDC/250VAC

Power Relays

LPR 30E

Terminal Type:- Solder/LugsContact configuration :- 1C

Contact rating:- 30A resistive at 24 VDC/250 VAC

PCC / LPR 30

Terminal Type:- Solder/LugsContact configuration :- 1C, 2C, 3C & 1N/O, 2N/O, 3N/O

Contact rating:- 30A resistive at 24 VDC/250 VAC

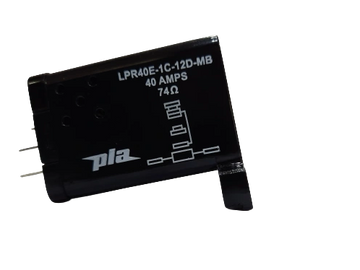

LPR 40E

Terminal Type:- Solder / LugsContact configuration :- 1C

Contact rating:- 40A

LPR 40 MB

Terminal Type:- SCREW TERMINALSContact configuration :- 1C

Contact rating:- 40A resistive at 24 VDC/250 VAC

HP 40/LPR 40

Terminal Type:- 1C Screw Terminals/2C, 3C LugsContact configuration :- 1C, 2C, 3C & 1N/O, 2N/O, 3N/O

Contact rating:- 40A resistive at 24 VDC/250 VAC

LPR 60

Terminal Type:- Screw Terminal/LugsContact configuration :- 1C, 1N/O & 1N/C

Contact rating:- 60A resistive at 24 VDC/250 VAC

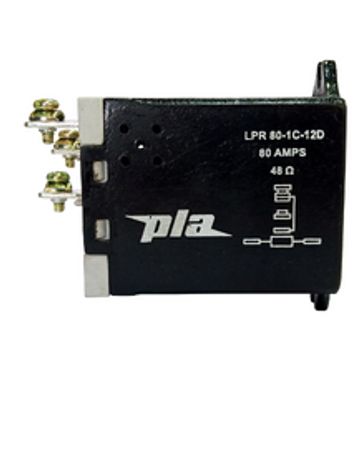

LPR 80

Terminal Type:- Screw TerminalsContact configuration :- 1C , 1N/O & 1N/C

Contact rating:- 80A resistive at 24 VDC/250 VAC

LPR 100

Terminal Type:- Screw TerminalsContact configuration :- 1C , 1N/O & 1N/C

Contact rating:- 100A resistive at 24 VDC/250 VAC

HPCC

Terminal Type:- PlugIn/Lugs/SolderContact configuration :- 2C & 2N/O

Contact rating:- 20A resistive at 220 VDC/250 VAC

PCN

Terminal Type:- Solder/LugsContact configuration :- 1C, 2C, 3C & 1N/O, 2N/O, 3N/O

Contact rating:- 30A resistive at 24 VDC/250 VAC

General Purpose Relays

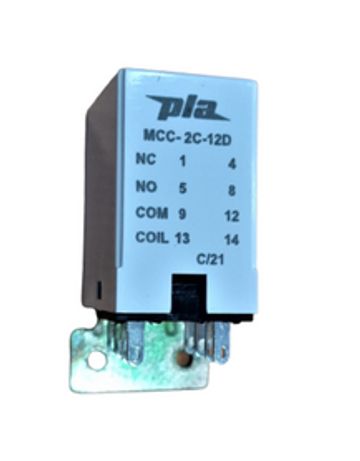

MCC

Terminal Type:- SolderContact configuration :- 1C, 2C & 3C

Contact rating:- 5A & 10A resistive at 24 VDC/250 VAC

MCC (Modified Design)

Terminal Type:- SolderContact configuration :- 1C,2C&3C

Contact rating:- 6A & 10A

MCC-P/PCB

Terminal Type:- PCBContact configuration :- 2C / 3C

Contact rating:- 10A

MCC-O/OLC

Terminal Type:- SolderContact configuration :- 2C & 3C

Contact rating:- 10A resistive at 24 VDC / 250 VAC

HCC / MPR

Terminal Type:- SolderContact configuration :- 1C, 2C & 3C

Contact rating:- 12A & 16A resistive at 24 VDC/250 VAC

PCB Mount Relays

PLT (N/O)

Terminal Type:- PCBContact configuration :- 1N/O

Contact rating:- 30A resistive at 24 VDC/250 VAC

PLT (1C)

Terminal Type:- PCBContact configuration :- 1C

Contact rating:- 20A (NO:30A & NC:20A) resistive at 24 VDC / 250 VAC

PLE

Terminal Type:- PCBContact configuration :- 1N/O & 1C

Contact rating:- 40A (N/O:40A & N/C:30A) resistive at 24 VDC / 250 VAC

PLC (Square Type Relays)

Terminal Type:- PCB/LugsContact configuration :- 1N/O & 1C

Contact rating:- 40A (N/O:40A & N/C:30A) resistive at 24 VDC / 250 VACDownload Brochure

SPC

Terminal Type:- PCBContact configuration :- 1C

Contact rating:- 6A resistive at 28 VDC/250 VAC

Sockets

MPCS 8 / 11 (RS 8E/RS 11E) For MPC,LMPC,ON-OFF

Terminal Type:- Screw TerminalContact configuration :- 8 & 11

Contact rating:- 16A & 12A

PMYS DR 8/11/14

Terminal Type:- Din RailContact configuration :- 14 & 11 & 8

Contact rating:- 10A

PMYS DR - 8 New

Terminal Type:- Din RailContact configuration :- 8 Pin

Contact rating:- 10A

PMY SPCB (PMY)

Terminal Type:- PCBContact configuration :- 8 & 14

Contact rating:- 10A

PLYS DR 8/14 (PLY)

Terminal Type:- Screw TerminalContact configuration :- 8 & 14

Contact rating:- 10A

HPSS

Terminal Type:- Screw TerminalsContact configuration :- 11 Pin

Contact rating:- 20A

MPCNS-5/8(MPCN)

Terminal Type:- SCREW TERMINALSContact configuration :- 5&8

Contact rating:- 10A

PMCMS 5/8(PMCM)

Terminal Type:- SCREW TERMINALSContact configuration :- 5 & 8

Contact rating:- 10A

PSRS (Safety Relay Socket)

Terminal Type:- Din RailContact configuration :- 10 Pins

Contact rating:- 6A

SMP Socket

Terminal Type:- SCREW TERMINALS Contact configuration :- 5

Contact rating:- 6A

PRS S1(LPR 40 2c,3c)

Terminal Type:- Din Rail Mounting

Contact configuration :- 11

Contact rating:- 40A & 30 A
