trinity touch PRODUCT LIST

Cable Glands

Polyamide

Threads Available- Metric, PG & Combination (PG-Metric)
Thread Sizes- M12 to M63, PG7 to PG48 & PG7M12 to PG48M63
Thread Length- Standard & Long
Temperature Range- -40°C / +100°C
Flammability Rating- UL94-V2
Sealing Ring & O-Ring- Nitrile Buna Rubber (NBR)
Certifications- UL, RoHS, CE, IP68
Accessories- Screw Plug, Blanking Plug, Dust Cap, Locknut
Silver Grey, Light Grey and Black color.

EMC

Threads Available- MetricThread Sizes M12 to M63
Thread Length- Standard & Long
Temperature Range- -40°C / +100°C
Lemallar Insert- Polyamide
Contact Spring- Steel
Sealing Ring & O-Ring- Nitrile Buna Rubber (NBR)
Certifications- UL, CE, IP68

Nickel Plated Brass

Threads Available- Metric & PG
Thread Sizes- M12 to M63 & PG7 to P48
Thread Length- Standard & Long
Temperature Range- -40°C / +100°C
Lemallar Insert- Polyamide
Sealing Ring & O-Ring- Nitrile Buna Rubber (NBR)
Certifications- UL, CE, IP68

Electrical Protection and Solderless Terminals

PV FUSE LINK PV10 (Photovoltaic Application)

Low overloading protection capacity of 1.35 times the fuse link rated current.
Excellent electric performance, quick protection for the PV system, cut down the fault current of the system.
Fuse link tube material: Melamine , withstand high internal pressure & thermal shock hence high breaking capacity

PV FUSE HOLDER (1500VDC 32A)

This fuse holder for cylindrical fuses photovoltaic application.
The body features high performance UL 94 V-0 rated polymer material.
Providing superior flammability rating, with exceptional durability and dielectric withstand properties.
Recommendable with PV10 Series fuse links.

The special feature of our solderless terminals is superior electrical conductivity, corrosion resistance as well as durability. The plastic insulating sleeves simplify the fittings on to the conductor and the different colours denote the size of the cross sections. The dimensions of the cord end terminals correspond to DIN standards. Our entire series of terminals works best in conjunction with our crimping tools which provide the perfect crimping for the connection.

Flexible Conduits & Accessories

Sealing Washers

Neoprene face sealing washers, shake proof washer, and earth tag washer.

Locknuts

Nickel Plated Brass Plated Steel, Stainless Steel Nylon Metric, Black or Grey Nickel Plated Brass Nylon PG, Black or Grey

Converters

Nickel Plated Brass Thread Convertors, Reducers and Enlargers, External and Internal Thread.

FPA & FPST Pieces

Fast fit, inspection T piece
IP rating: FPA IP66
IP rating IP66 + IP67 + IP68 (2 bar)
Maintains all the benefits of FPA and FPAX fittings
Inspection lid facilitates pull through of cables
Rounded internal corners protect cable insulation during installation and use
Incorporates mounting lungs

Flexilok Fittings

One piece fast tfit
Slim design
IP rating: IP66
Anti-vibration and tamper resistant
Can be removed using a screwdriver
High-pull off strength 25kg with FPAS21
Suitable for fine and coarse pitch conduits
Temperature range: -50°C to +135°C
Metric threads supplied complete with locknuts
Low Fire Hazard (LFH)
Halogen, Sulphur and Phosphorus free
Available in black and grey (RAL 7031)

Type FPP

• Acid Resistant • Temperature Range: -20°C to +90°C • Self-Extinguishing • Slit Version Available on Request

Type FPADS

• Make from 2 interlocking slit corrugated conduits
• Temperature range: -40°C to +110°C
• Cables can be inserted laterally
• Provides abrasion resistance and routing of cables for static applications
• Self-extinguishing
• UL94V2
• Halogen, Sulphur and Phosphorus free

Type FPY

Highly flexible and high fatigue life
High impact strength and recovers if crushed.
Temperature Range -40°C to +100°C
Highly resistant to solvents and oils
Self-extinguishing
Halogen, Sulphur and Phosphorus free
FPY6 also available, 7.3mm OD x 5mm IDSlit version, FPYS, also available. Cable can be inserted laterally.

Type FPIH

Highly flexible and high fatigue life
High mechanical strength
High impact resistance
UV resistant
Displays self-recovery if crushed
Temperature Range -50°C to +110°C
UL recognized
Highly resistant to solvents and oils
Self-extinguishing
Low fire hazard
Halogen, Sulphur and Phosphorus free

Type FPAH

High mechanical strength
High impact resistance
Temperature range: -40°C to +120°C
UL recognised
Low Fire Hazard (LFH)
UL 94 V2 flame retardancy
Halogen, Sulphur and Phosphorus free
UV resistant
Abrasion resistant
Highly resistant to solvents and oils

Type FPR

Highly flexible and high fatigue life
High impact strength and recovers if crushed
IP rating IP66 with FPA fittings• IP66 + IP67 + IP68 with FPAX fittings
Temperature range: -40°C to +120°C (-20°C to +100°C for moving applications)
Lloyd’s Register Type Approval
Extra Low Fire Hazard (LFH)
UL 90 V0
UV resistant (black)
Abrasion resistant
Highly resistant to solvents and oils

Type FPAL

Highly flexible and high fatigue life
High impact strength and recovers if crushed
IP rating IP66 with FPA fittings
IP66 + IP67 + IP68 with FPAX fittings
Temperature range: -40°C to +120°C (-20°C to +100°C for moving applications)
Highly resistant to solvents and oils
Self-extinguishing
Halogen, Sulphur and Phosphorus free.

Type FPAS

Highly flexible and high fatigue life
High impact Strength and recovers if crushed
IP rating IP66 with FPA fittings
IP66 + IP67 + IP68 with FPAX fittings
Temperature range: -40°C to +120°C (-20°C to +100°C for moving applications)
Lloyd’s Register Type Approval
Low Fire Hazard (LFH)
UL 94 V2
Halogen, Sulphur and Phosphorus free
UV resistant (black)
Abrasion resistant
Highly resistant to solvents and oils

Type LTPUL

High mechanical strength
Good flexibility
IP rating: IP66 + IP67 + IP68
Smooth, wipe clean outer cover
Cover does not wrinkle when bent
Temperature range: -45°C to +135°C
Resistant to oils and greases
Nickel plated brass or stainless steel fittings

Type LTPHC

High mechanical strength
Good flexibility
IP rating: IP66 + IP67 + IP68
Smooth, wipe clean outer cover
Cover does not wrinkle when bent
Temperature range: -45°C to +135°C
Resistant to oils and greases
Nickel plated brass or stainless steel fittings

Type LTP

High mechanical strength
Good flexibility
IP rating: IP66 + IP67 + IP68
Smooth, wipe clean outer cover
Cover does not wrinkle when bent
Temperature Range: -20°C to +105°C
Lloyd’s Register Type Approval
Resistant to oils and greases
UV resistant and suitable for external use
Nickel plated brass or stainless steel fittings

Type FB

High mechanical strength
Highly flexible
IP rating: IP40
High abrasion resistance
Resists hot metal swarf and splashes
Provides EMC screening
Temperature range: -50°C to +300°C
Inherently Low Fire Hazard (LFH)
Nickel plated brass fittings

Type FSB

High mechanical strength
Highly flexible
IP rating: IP54
High abrasion resistance
Resists hot metal swarf and splashes
Provides EMC screening
Temperature range: -15°C to +70°C
Nickel plated brass fittings

Type LFHU

High mechanical strength
Highly flexible
IP rating: IP54 with standard fittings, IP65 with type C compression fittings
Extra Low Fire Hazard (LFH)
UL 94 V0
Halogen, Sulphur and Phosphorus free
Temperature range: -25°C to +90°C
Nickel plated brass fittings

Type FNU

High mechanical strength
Highly flexible
IP rating: IP54 with standard fittings, IP65 with type C compression fittings
Temperature range: -40°C to +120°C
FNU offers high abrasion resistance and solvent sesistance
Low Fire Hazard version available
Nickel plated brass fittings

Type FSU

High mechanical strength
Highly flexible
IP rating: IP54 with standard fittings, IP65 with type C compression fittings
Temperature range: -15°C to +70°C
FNU offers high abrasion resistance and solvent resistance
Low Fire Hazard version available
Nickel plated brass fittings

Type SSU

High mechanical strength
Highly flexible
Inherently Low Fire Hazard (LFH)
Temperature range: -50°C to +300°C
IP rating: IP40
SSU version offers corrosion resistance
Nickel plated brass fittings
Stainless steel (316) fittings

Industrial Controllers

Relay Socket

Material- Polyamide
Colour- Black
Rating- 5A AC/DC, 250V rms.
Dielectric strength- 2000V AC rms. for 1 minute
Insulation resistance- 1000Mohms min. at 500 V DC
Temperature range- -45 oC to +120oC
Terminals- PCB mounted

Phase Sequence Relays(17.5 & 22.5mm) PHASE SEQUENCE RELAY

17.5 and 22.5 mm
• 3Ø – 3 Wire Input
• Monitors (Unbalancing, Phase Sequence, Phase Missing)
• LED Indication : Trip & Power ON
• Slim, Space Saving Design
• DIN Rail Mount

Dual Display Multifunction Timer

TT-DT96-F4-6DSR
• Eight Set Point
• LED Indications : Relay status, Cascade O/P , Time range - ON/OFF time, Timing in progress
• 2+4 digits, 7 Segment LED, Dual Display
• Size : 1/16 DIN 96x96x110 mm

Dual Display Multifunction Timer

TT-DT48-F4-3DDR
• Single Set Point
• LED Indications : Relay ON, Seconds, Minutes, Hours
• 3 digits, 7 segment LED, Dual Display
• Size : 1/16 DIN 48x48x110 mm

Digital Dual Display Multifunction Timer

TT-DT48-F8-4DDR
• Dual set point
• LED Indications : Relay ON, Seconds, Minutes, Hours
• 4 digits, 7 segment LED, Dual Display
• Size : 1/16 DIN 48x48x110 mm

Digital Multuifunction Timer

TT-DT48-F4-3DSR
• Single set point, front keypad setting
• 3 digits, 7 segment LED display
• 2 C/O output
• Size : 1/16 DIN 48x48x110 mm

On Delay / Interval Digital Timer

• Preset timer, push wheel setting
• 3 digits, 7 segment LED display
• 2 C/O output
• Size : 1/16 DIN 48X48X110 mm

Multi Function Analog Timer

Offers multifunction analog timer solutions with flexible multi-mode universal timer functionality. Our multi-mode, multi-range timers feature 5A SPDT contacts and time ranges from 0.1 seconds to 30 hours.

The multi-function analog timer relays offer a variety of functions that can be easily selected from the front panel. Timing range is also adjustable on the front of the relay.

All timer relays are designed for DIN rail mounting, ensuring compact design, ease of use, and high-quality standards.

Star Delta Analog Timer

Trinity Touch offers a star delta analog timer with a single function, featuring 5A SPDT contacts. The timer provides run time ranges from 0–30 seconds to 0–60 seconds, with a fixed changeover time of 50 milliseconds to 100 milliseconds. Additionally, our single phase preventer for star delta ensures reliable protection and seamless operation in star-delta motor starters.

Reverse Pause Forward Analog Timer

Trinity Touch offers a reverse pause forward analog timer with a single function, featuring 5A SPDT contacts. The timer provides an ON time range of 1 to 10 minutes and a pause time range of 10 to 100 seconds. Available in 17.5mm Analog Timer and 22.5mm Analog Timer variants, it ensures precise control and reliable performance.

Cyclic ON-OFF Analog Timer

Trinity Touch offers a cyclic ON-OFF analog timer with a single function relay, featuring Cyclic ON first / Cyclic OFF first operation. It comes with 5A/8A SPDT/DPDT contacts and time ranges from 0.1 seconds to 30 hours, ensuring precise and reliable cyclic timing control.

Timer ON Delay / Interval Analog Timer

Trinity Touch offers a timer ON delay / interval analog timer, a single function ON delay timer relay with 5A/8A SPDT/DPDT contacts. It features time ranges from 0.1 seconds to 30 hours, ensuring precise and reliable delay and interval timing.

Interface Modules

Lamp Test Module

• Easy connection using standard screw connection PCB terminal blocks.
• Available with individual common anode and common cathode standard diode configurations.
• Lamp Test Module options available for both DC and AC Lamp Test Modules as standard.
• Compatible with Lamp Test Diode Block configurations for reliable performance.
• Mounting options: DIN rail mounting / panel mounting.

Power Distribution Module

• Power Distribution Modules are used for distributing power to multiple field devices.
• Installation time is significantly reduced by eliminating the need for external bridges or daisy-chain wiring.
• Simple and cost-effective to implement.
• Two separate rows of terminal blocks are internally bridged, allowing a single power supply to power multiple field devices.
• Mounting: DIN 35 carrier rail.

Diode O-Ring Module

• Diode O-Ring Module is used when two SMPS are connected in parallel for redundancy.
• Diode ORING Unit ensures seamless power switching between supplies.
• 10A module connects two power supplies of 5A each.
• 20A module connects two power supplies of 10A each.
• Increases overall system efficiency.
• Improves system reliability.
• Simple and cost-effective to implement.
• Mounting: DIN 35 carrier rail.

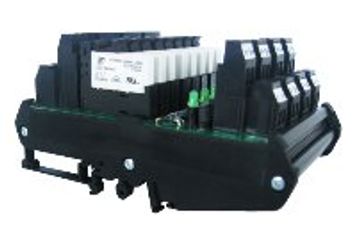

CNC Interface Modules With 24 Inputs & 16 Outputs

• CNC interface module With 24 Input 16 Output for seamless CNC connectivity.
• Functions as both a passive module (for CNC inputs) and a CNC specific 16 channel 24 Input 16 output relay board on a single module.
• Equipped with 16 interposing relays.
• Includes relay-pluggable base.
• Coil voltage: 24V DC.
• 1 changeover contact.
• Freewheeling diode across the relay coil for protection.
• FRC 50 connector provided on the input side for CNC input and output termination.
• Mounting: DIN 35 carrier rail

Utility Modules

Onboard 5A utility socket with a switch, allowing easy tapping of 230V AC by simply plugging in any 5A power plug. By default, some points are designated for 230V AC and others for 110V AC. However, with the use of external wire jumpers, the entire module can operate at a single potential.
As a utility module relay manufacturer and supplier, we provide reliable solutions for efficient power distribution in control panels.

RJ45 CONNECTOR

• Passive module with screw terminal connectors on one end and an RJ45 terminal connector on the other.
• Input and output are electrically connected in a 1:1 configuration.
• Mounting DIN 35 carrier rail.

ELCO Connector

• Passive module with screw terminal connectors on one end and a D-Sub male/female connector on the other.
• Input and output are electrically connected in a 1:1 configuration.
• Mounting: DIN 35 carrier rail.
• Interfaces with pluggable ELCO connectors for seamless integration.

D-Sub Connector

• Passive module with screw terminal connectors on one end and a D-Sub male/female connector on the other.
• Input & output are electrically connected with each other in 1:1 connection
• Mounting DIN 35 carrier rail.

Passive Module WITH FRC CONNECTOR

• Passive module With FRC connector, featuring screw terminal connectors on one end and a flat ribbon connector on the other.
• Input and output are electrically connected in a 1:1 configuration.
• Mounting: DIN 35 carrier rail.

With Fuse At Output AC Output SSR Modules

• AC output SSR modules with solid-state relays.
• Directly soldered design.
• Available in 8/4 channel configurations.
• Input voltage: 24V DC | Output voltage: 240V AC.
• Rated load current: 3A.
• With fuse at output for added protection.
• Jumpers provided for selection between positive looping/negative looping.
• Free-wheeling diodes included for polarity protection.
• Mounting: DIN 35 carrier rail.

Without Fuse AC Output SSR Modules

• Without fuse AC output SSR Module with solid-state relays.
• SSR relays are directly soldered.
• Available in 8-channel and 4-channel SSR relay board variants.
• Input voltage: 24V DC.
• Output voltage: 240V AC.
• Green LED indicator for input status.
• Jumpers provided for selection between positive looping/negative looping.
• Free-wheeling diodes for polarity protection.
• Rated load current: 3A.
• DIN 35 carrier rail mounting.

Output SSR Modules

• Output SSR Module with solid-state relays.
• SSR relays are directly soldered.
• Available in 8-channel and 4-channel SSR Relay Board with DC Output Module variants.
• Input voltage: 24V DC.
• Output voltage: 240V AC.
• Jumpers provided for selection between positive looping/negative looping.
• Free-wheeling diodes for polarity protection.
• Rated load current: 3A.
• DIN 35 carrier rail mounting.

With Slim SSR DC Output SSR Modules

• Slim SSR DC Output SSR Module with compact solid-state relays.
• Designed with a base (relay-pluggable).
• Available in 16-channel, 8-channel, and 4-channel configurations.
• Input voltage: 24V DC.
• Output voltage: 24V DC.
• Rated load current: 3.5A.
• Jumpers provided for selection between positive looping/negative looping.
• DIN 35 carrier rail mounting.
• Manufactured by Trinity Touch, a leading relay module manufacturer.

Fuse Blow Indication DC Output SSR Modules

• Fuse blow indication DC output SSR module with solid-state relays.
• SSR relays are directly soldered.
• Available in 8-channel and 4-channel configurations.
• Input voltage: 24V DC.
• Output voltage: 24V DC.
• Rated load current: 3A.
• Fuse protection at the output.
• Green LED for input status and red LED for fuse fail indication.
• Jumpers provided for selection between positive looping/negative looping.
• Free-wheeling diodes for polarity protection.
• DIN 35 carrier rail mounting.

DC Output SSR Modules

• SSR Input Voltage 24V DC, Output Voltage 5-200V DC with solid-state relays.
• SSR relays are directly soldered.
• Available in 8-channel and 4-channel configurations.
• Rated load current: 3A.
• Fuse protection at the output.
• Jumpers provided for selection between positive looping/negative looping.
• Free-wheeling diodes for polarity protection.
• DIN 35 carrier rail mounting.

SSR INPUT VOLTAGE 24V DC, OUTPUT VOLTAGE 5-200V DC

• SSR Relay module with Unison solid state relays.
• Relays directly soldered.
• Input voltage 3-32V DC
• Output Voltage 5-200V DC
• Jumpers are provided for selection between positive looping / negative looping.
• Free wheeling diodes are provided for polarity protection.
• Rated load current 3A.
• Mounting DIN 35 carrier rail.

Without Fuse DC Output SSR INPUT VOLTAGE 24V DC

• SSR relay module with solid state relays.
• Relays directly soldered.
• 8/4 channels.
• Input voltage 24V DC.
• Output voltage 24V DC.
• Green LED for input status.
• Jumpers are provided for selection between positive looping / negative looping.
• Free wheeling diodes are provided for polarity protection.
• Rated load current 3A.
• Mounting DIN 35 carrier rail.

Without Fuse DC Output SSR Modules

• SSR relay module with crydom solid-state relays.
• Relays are directly soldered.
• Available in 8-channel and 4-channel configurations.
• Input voltage: 24V DC.
• Output voltage: 24V DC.
• Jumpers provided for selection between positive looping/negative looping.
• Free-wheeling diodes for polarity protection.
• Rated load current: 3A.
• Supports AC input types double change over functionality.
• DIN 35 carrier rail mounting.

AC Input Types Double Change Over

• Relay module with 16/8/4 electromechanical relays.
• With base (Relay-Pluggable).
• 2 change over.
• Freewheeling diode across relay coil for protection.
• Mounting DIN 35 carrier rail.

AC Input Types

• AC input types relay module with 16-channel, 8-channel, and 4-channel electromechanical relays.
• Designed with a base (relay-pluggable).
• Supports single change over functionality.
• Freewheeling diode across the relay coil for protection.
• DIN 35 carrier rail mounting.

Slim EMR DC Input Type

• Slim EMR DC input type relay module with slim electromechanical relays.
• Designed with a base (relay-pluggable).
• Available in 16-channel, 8-channel, and 4-channel configurations.
• Input voltage: 24V DC.
• Output voltage: 24V DC.
• Maximum load current: 6A.
• Jumpers provided for selection between positive looping/negative looping.
• DIN 35 carrier rail mounting.

Blow Indication DC Input Type DOUBLE CHANGE OVER WITH FUSE AND FUSE FAIL IN

• Blow indication DC input type double change over with fuse and fuse fail indication relay module.
• Available in 4-channel, 8-channel, and 16-channel miniature relays.
• Designed with a base (relay-pluggable).
• Coil voltage: 24V DC.
• Supports double change over functionality.
• Freewheeling diode across the relay coil for protection.
• Jumpers provided for selection between positive looping/negative looping.
• DIN 35 carrier rail mounting.

Blow Indication DC Input Type

• Blow indication DC input type relay module with 4-channel, 8-channel, and 16-channel miniature relays.
• Designed with a base (relay-pluggable).
• Coil voltage: 24V DC.
• Supports single change over functionality.
• Freewheeling diode across the relay coil for protection.
• Jumpers provided for selection between positive looping/negative looping.
• DIN 35 carrier rail mounting.

With Fuse DC Input Type DOUBLE CHANGE OVER

• Relay module with fuse DC input type double change over functionality.
• Available in 4-channel, 8-channel, and 16-channel miniature relays.
• Designed with a base (relay-pluggable).
• Coil voltage: 24V DC.
• Supports double change over functionality.
• Freewheeling diode across the relay coil for protection.
• Jumpers provided for selection between positive looping/negative looping.
• DIN 35 carrier rail mounting.

With Fuse DC Input Type SINGLE CHANGE OVER

• Single changeover with fuse at output Relay module with 4-channel, 8-channel, and 16-channel miniature relays.
• Designed with a base (relay-pluggable).
• Coil voltage: 24V DC.
• Supports single change over functionality.
• Freewheeling diode across the relay coil for protection.
• Jumpers provided for selection between positive looping/negative looping.
• DIN 35 carrier rail mounting.

Common Looping DC Input Type FOUR CHANGE OVER

• Common looping DC input type for change over relay module with 8-channel and 4-channel miniature relays.
• Designed with a base (relay-pluggable).
• Coil voltage: 24V DC.
• Supports four change over functionality.
• Freewheeling diode across the relay coil for protection.
• Jumpers provided for selection between positive looping/negative looping.
• DIN 35 carrier rail mounting.

DC Input Type DOUBLE CHANGE OVER

• Relay module DC input type double change over with 16, 8, 4, 2, or 1 miniature relays.
• Designed with a base (relay-pluggable).
• Coil voltage: 24V DC.
• Supports double change over functionality.
• Freewheeling diode across the relay coil for protection.
• Jumpers provided for selection between positive looping/negative looping.
• DIN 35 carrier rail mounting.

Common Looping DC Input Type SINGLE CHANGE OVER

• Single change over - coil voltage 24V DC CE, RoHS relay module with 16, 8, 4, 2, or 1 miniature relays.
• Designed with a base (relay-pluggable).
• Coil voltage: 24V DC.
• Supports single change over functionality.
• Freewheeling diode across the relay coil for protection.
• Jumpers provided for selection between positive looping/negative looping.
• DIN 35 carrier rail mounting.
